PROCESS COOLING APPLICATION

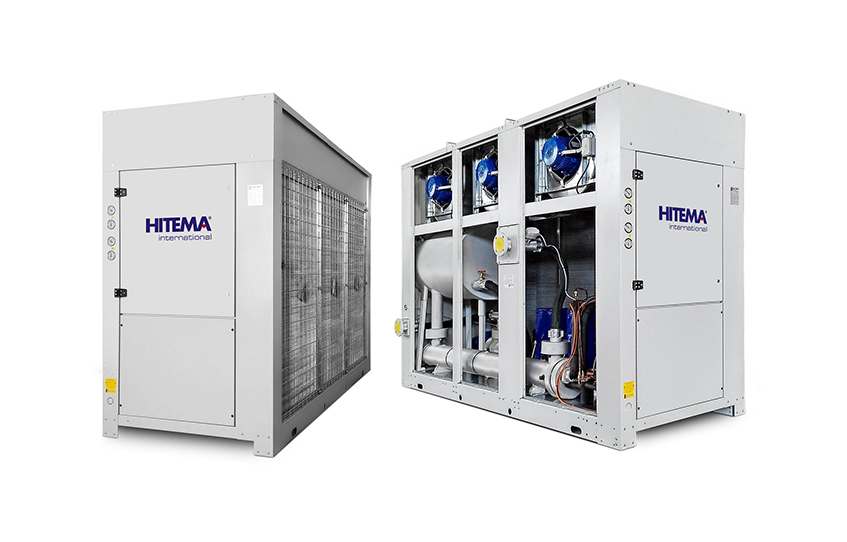

CSE SERIES

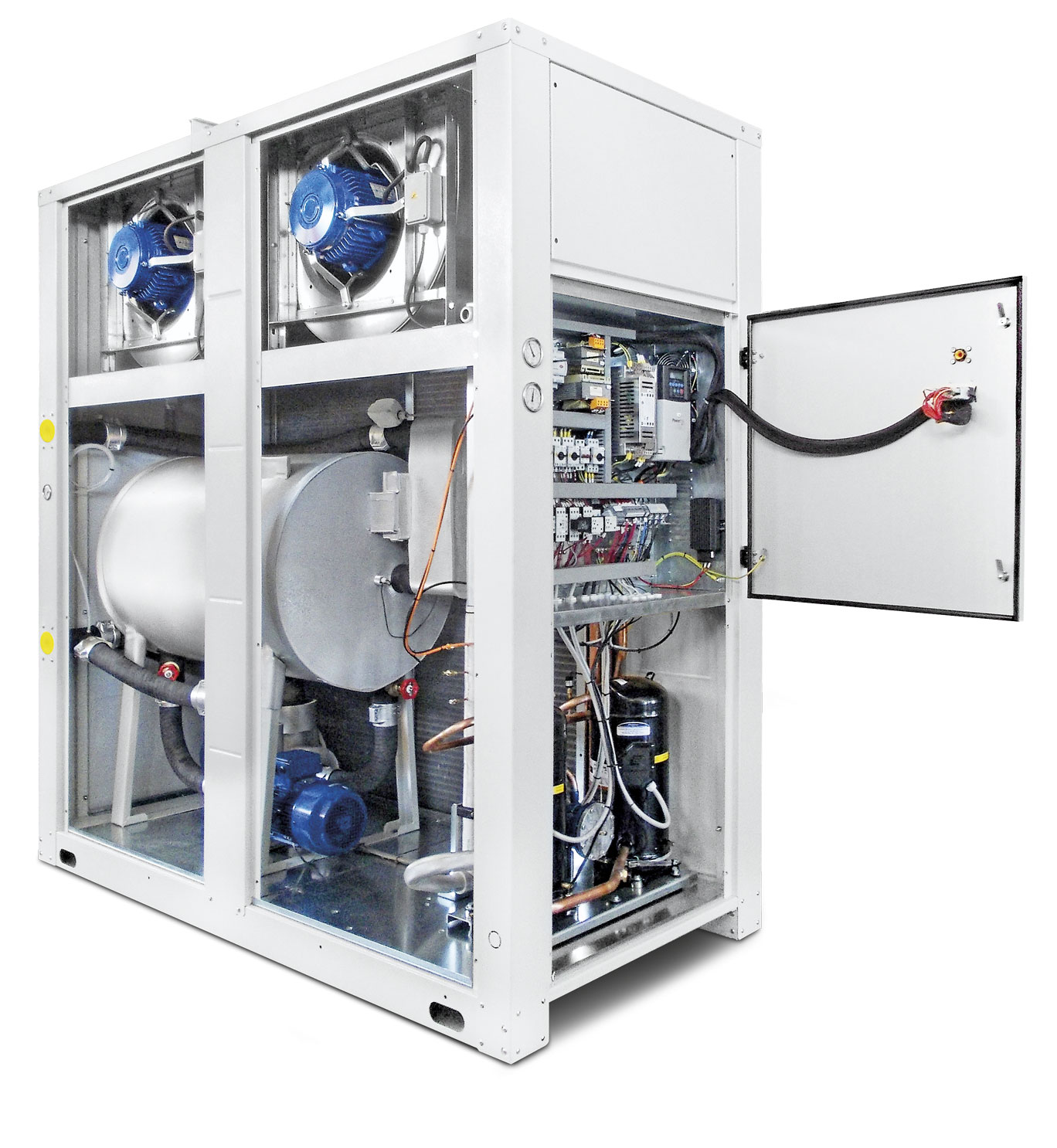

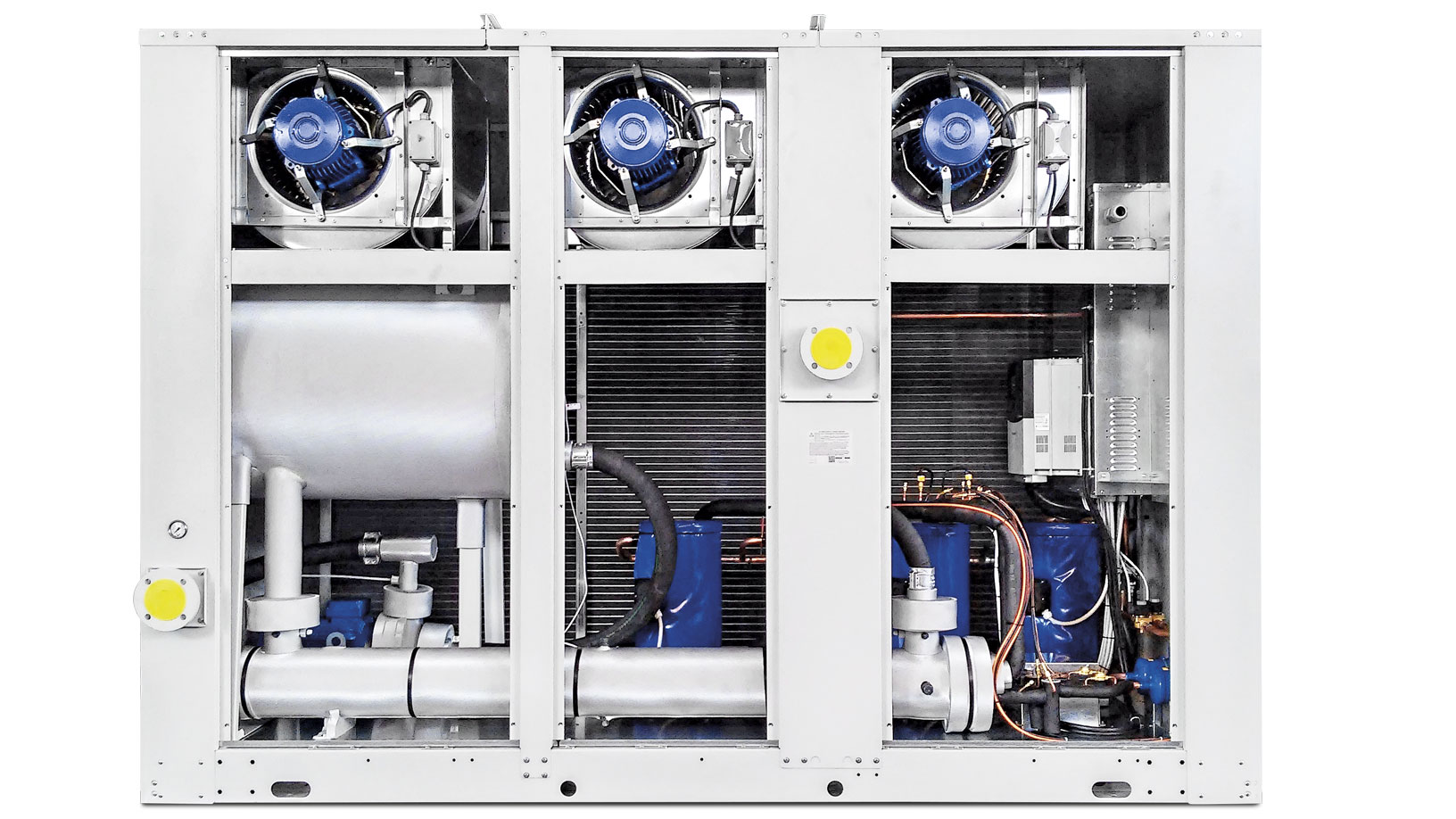

STANDARD CONFIGURATION:
Compressors:Scroll
Condenser: Air-Cooled, with copper tubes and aluminium finned core
Evaporator: Coaxial (CSE.030÷CSE.100) or Shell & Tube (CSE.130÷CSE.370)
Expansion Valve: Thermostatic
Fans: Centrifugal, available head pressure about 200Pa
Protection Rating: IP44
Refrigerant: R410A
ADVANTAGES:
- Reliability and continuity of operation also in severe service conditions
- IIntegrated hydraulic module with tank as a standard (inverter pumps on request)
- Stainless steel hydraulic circuit on request
- Centrifugal fans with high available pressure
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
 |
Technical DATA SHEET of CSE series
last updated: 10 January 2018
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - CSE Chillers
last updated: 18 July 2016
|
Download PDF | |
|

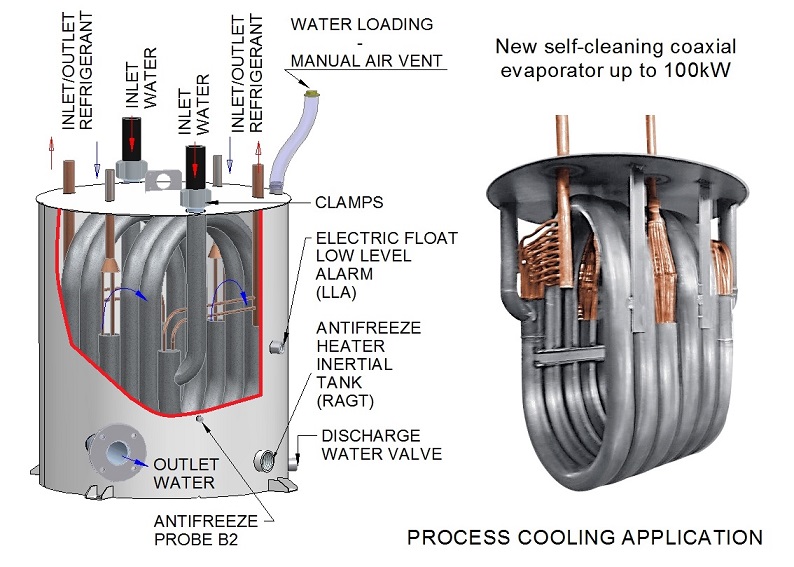

Advantages of Hitema COAXIAL EVAPORATOR
last updated: 6 October 2016
|
Download PDF | |
|
Differences between water tank OPEN CIRCUIT and CLOSED CIRCUIT
last updated: 13 April 2016
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
| |
| Models
|
Dimensional Drawing
|
P&ID
|
| CSE.030 ÷ CSE.045 | DIM-CSE-030ST01 REV.02 | SFI-CSE-030ST01 REV.02 |
| CSE.061 ÷ CSE.075 | DIM-CSE-061ST01 REV.01 | SFI-CSE-061ST01 REV.04 |
| CSE.100 | DIM-CSE-100ST01 REV.01 | |
| CSE.130 ÷ CSE.160 | DIM-CSE-130ST01 Rev.01 | SFI-CSE-130ST01 REV.05 |
| CSE.185 | DIM-CSE-185ST01 Rev.00 | |
| CSE.230 ÷ CSE.280 | DIM-CSE-230ST01 REV.02 | SFI-CSE-230ST01 REV.05 |
| CSE.340 ÷ CSE.370 | DIM-CSE-340ST01 REV.01 |
