COOLING BIG EVOLUTION
EET SERIES
STANDARD CONFIGURATION:
Compressors:Screw
Condenser: Air-Cooled, with copper tubes and aluminium finned core
Evaporator: Shell & Tube
Expansion Valve: Electronic
Fans: AC axial
Protection Rating: IP54
Refrigerant: R134a, R1234ze on request
ADVANTAGES:
- PHigh cooling capabilities with a wide range of possible applications

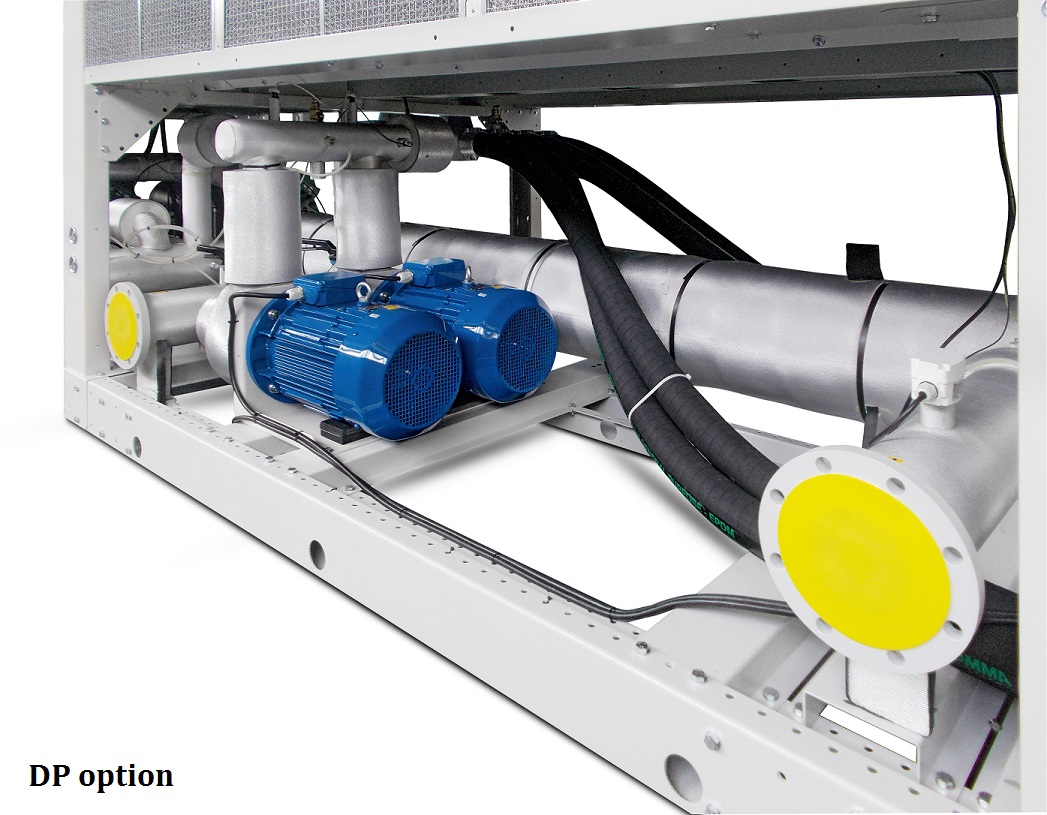

- Integrated hydraulic module with tank as an optional (inverter pumps on request)

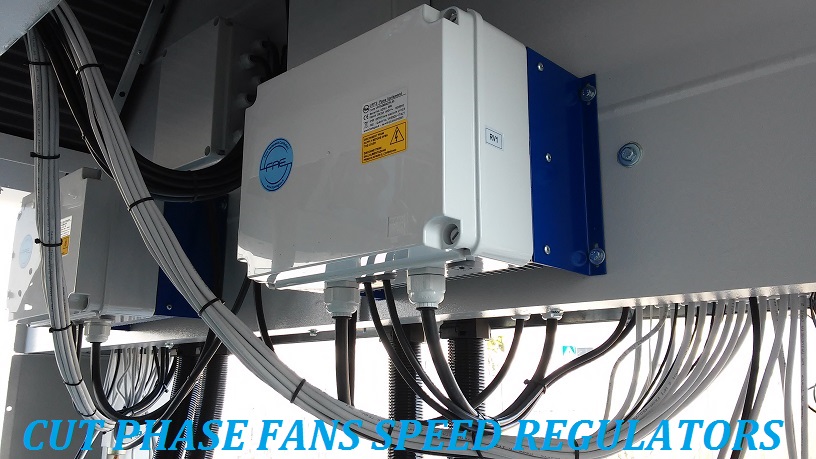

- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible

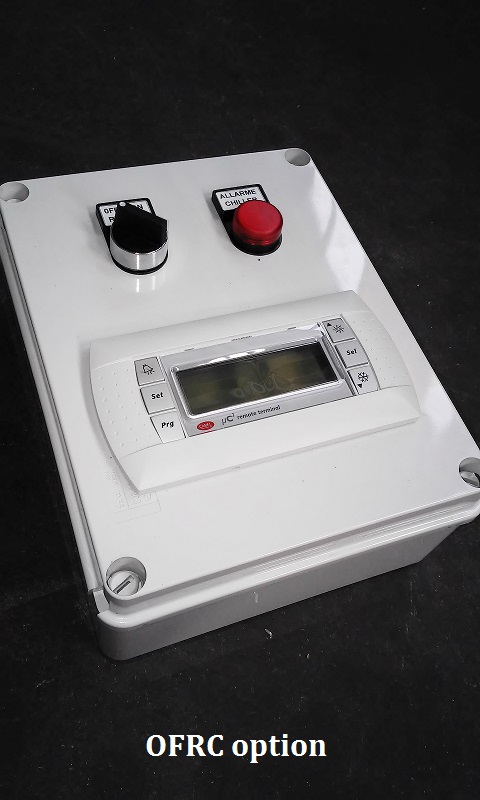

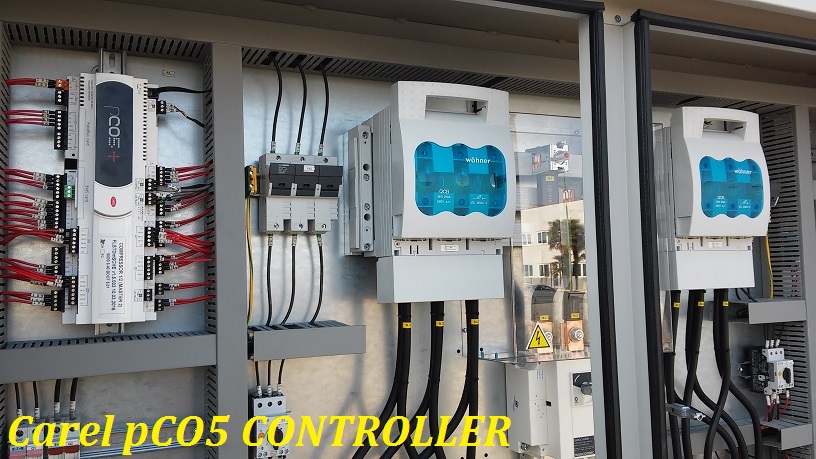

- Advanced control
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL

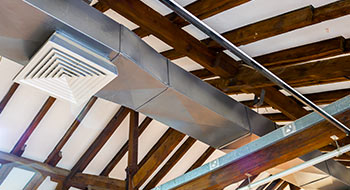

AIR CONDITIONING
 |
Technical DATA SHEET of EET series
last updated: 11 January 2018
|
Download PDF | |
|
Technical DATA SHEET of tropicalized versions EET-HA45 and EET-HA50
last updated: 01 December 2016
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - EET/EEF Chillers
last updated: 09 January2017
|
Download PDF | |
|
Hitema ADIABATIC COOLING SYSTEM
last updated: 04 December 2015
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| EET.210 ÷ EET.250 | DIM-EET-210ST01 REV.00 | SFI-EET-210ST02 REV. 01 |
| EET.300 ÷ EET.400 | DIM-EET-300ST01 REV.01 | |
| EET.470 ÷ EET.580 | DIM-EET-470ST01 REV.01 | |
| EET.650 ÷ EET.700 | DIM-EET-650ST01 REV.01 | |
| EET.850 | DIM-EET-850ST01 REV.01 | |
| EET.1000 ÷ EET.1100 | DIM-EET-1000ST01 REV.01 | |
| EET.1210 | DIM-EET-1210ST01 REV.01 | |
| EET.1350 | DIM-EET-1350ST01 REV.01 | |
| EET.1500 | DIM-EET-1500ST01 REV.01 |

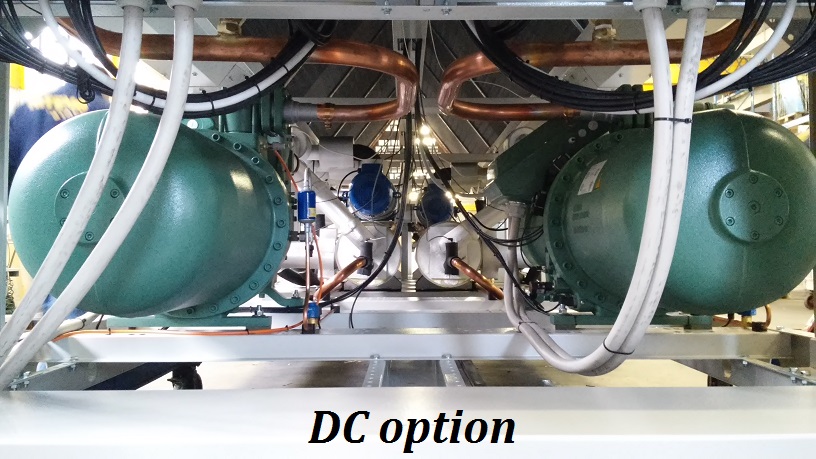

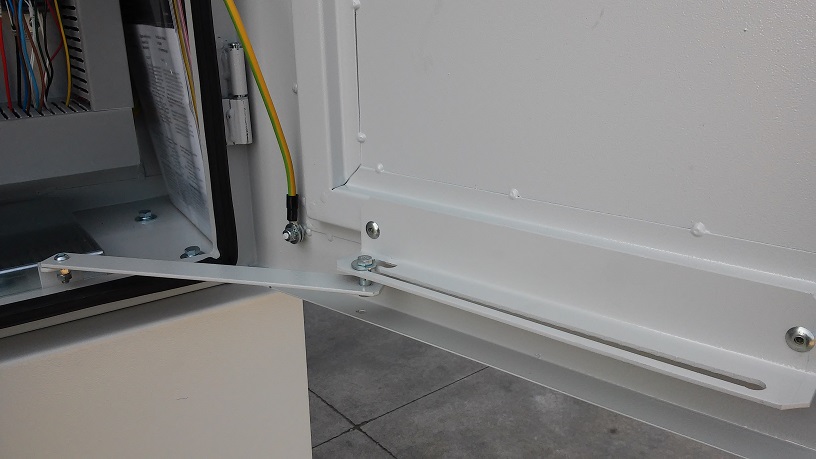

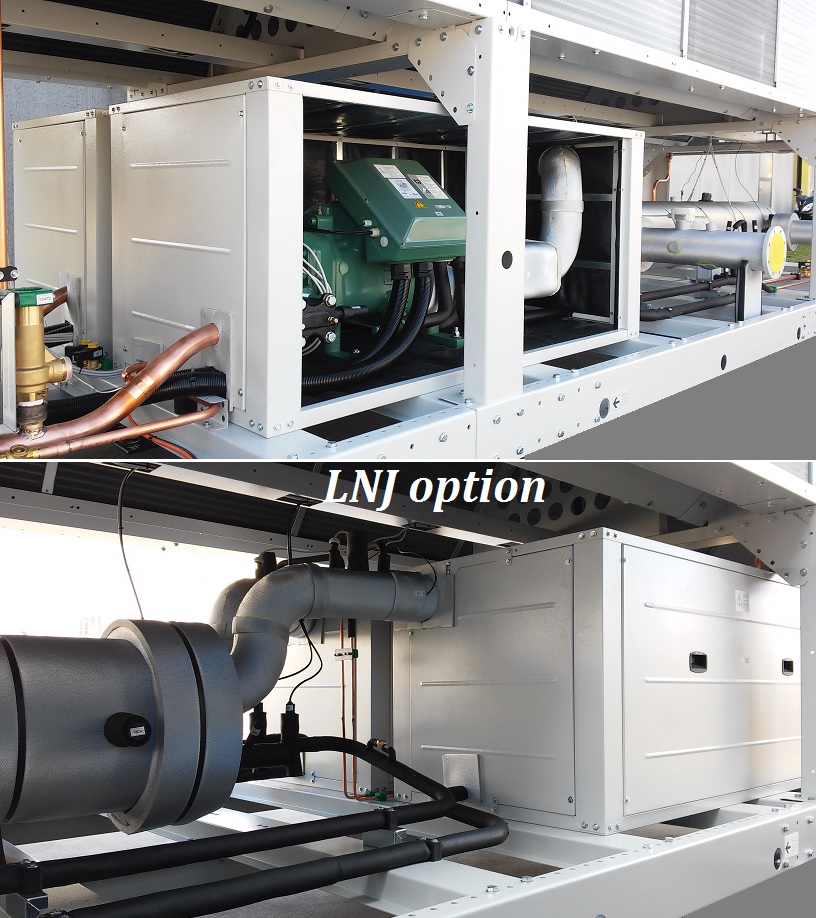

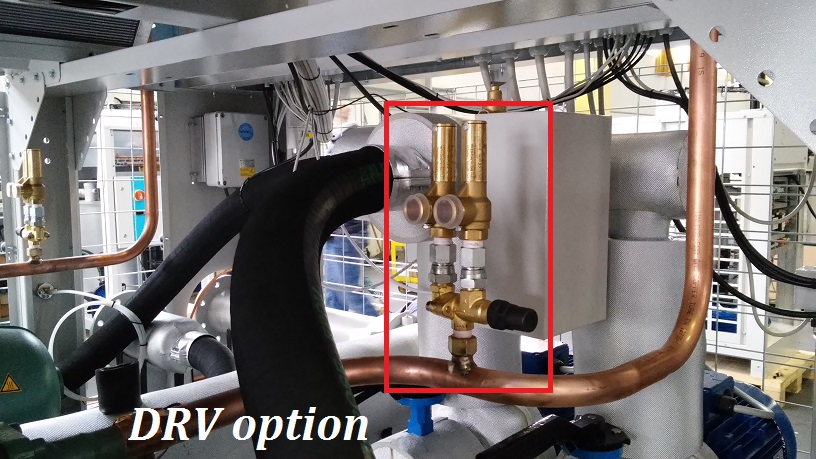

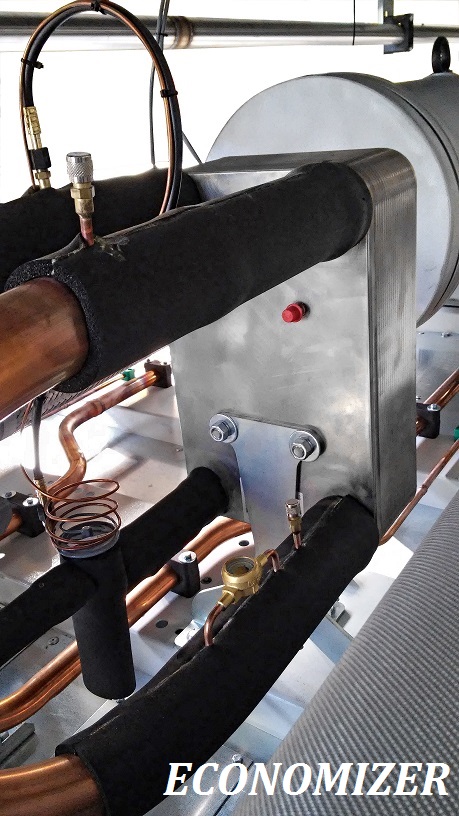

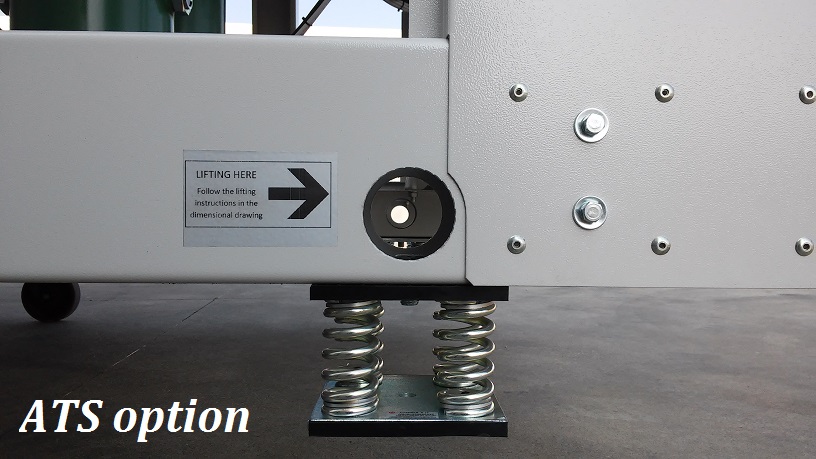

GALLERY:
