AIR CONDITIONING APPLICATION
CFT SERIES

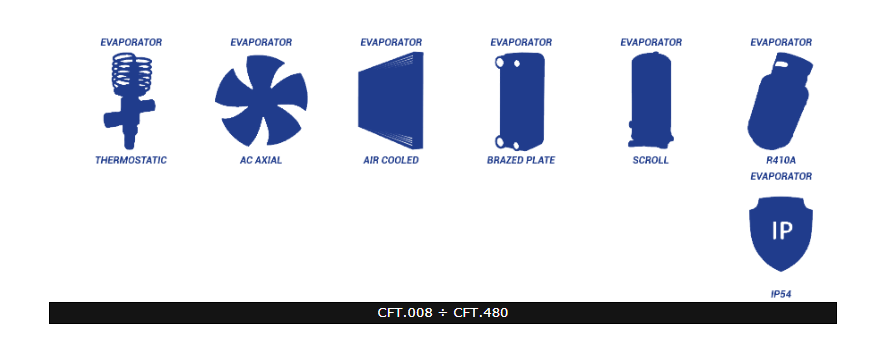

STANDARD CONFIGURATION:
Compressors:Scroll
Condenser: Air-Cooled, with copper tubes and aluminium finned core
Evaporator: Brazed plate
Expansion Valve: Thermostatic
Fans: AC axial
Protection Rating: IP54
Refrigerant: R410A
ADVANTAGES:
- Cheap and compact design for standard operating conditions
- Low noise design available
OPTIONAL ON REQUEST:
AIR CONDITIONING
 |
Technical DATA SHEET of CFT series
last updated: 08 July 2016
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - CFT Chillers
last updated: 11 July 2016
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
| |
| Models
|
Dimensional Drawing
|
P&ID
|
| CFT.008 ÷ CFT.016 | DIM-CFT-008ST01 REV.00 | SFI-CFT-008ST01 REV.00 |
| CFT.018 ÷ CFT.022 | DIM-CFT-018ST01 REV.00 | |
| CFT.030 ÷ CFT.055 | DIM-CFT-030ST01 REV.02 | SFI-CFT-030ST01 REV.01 |
| CFT.061 ÷ CFT.100 | DIM-CFT-061ST01 REV.03 | SFI-CFT-061ST01 REV.02 |
| CFT.130 ÷ CFT.185 | DIM-CFT-130ST01 REV.00 | SFI-CFT-130ST01 Rev.01 |
| CFT.200 | DIM-CFT-200ST01 Rev.00 | SFI-CFT-230ST01 Rev.02 |
| CFT.230 ÷ CFT.340 | DIM-CFT-230ST01 REV.01 | |
| CFT.370 ÷ CFT.480 | DIM-CFT-370ST01 REV.02 |

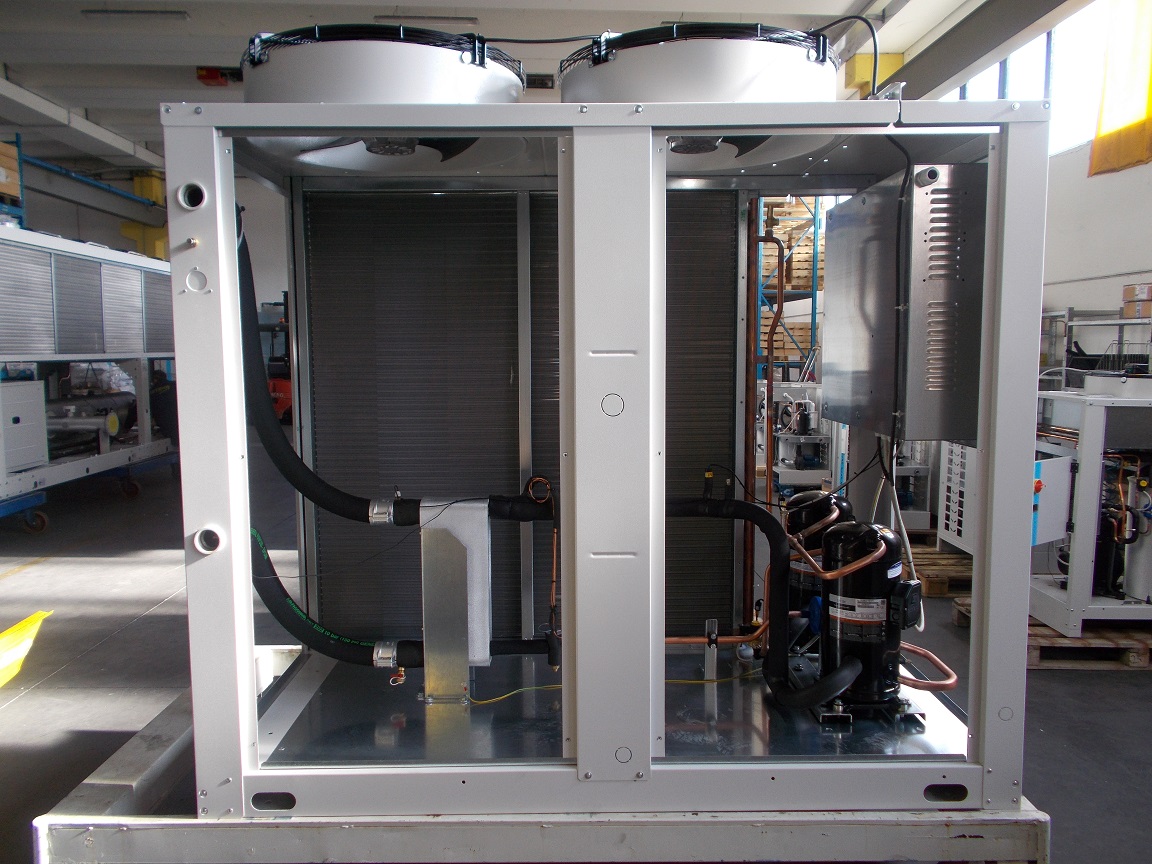

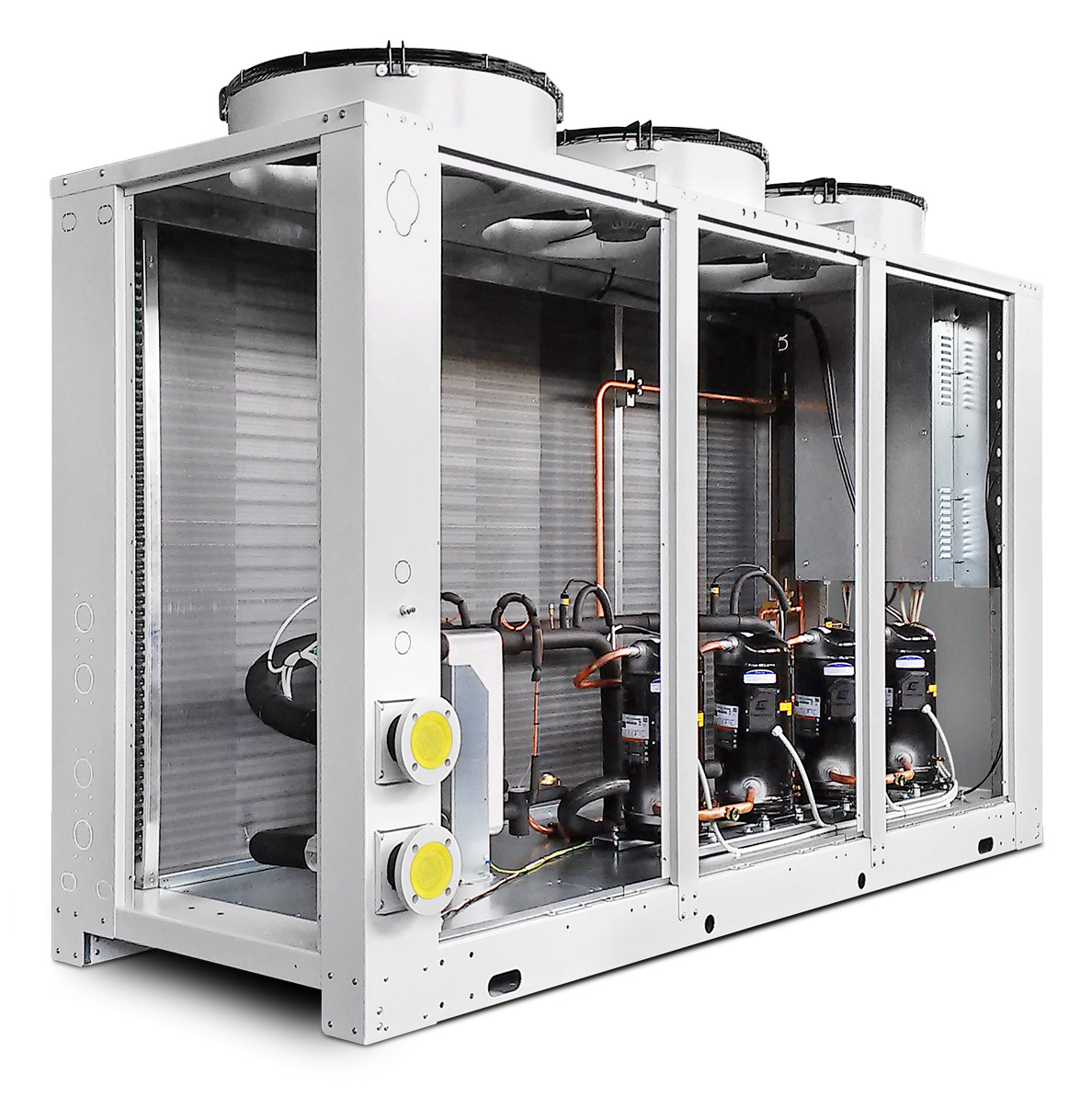

GALLERY:
