RS-2, RS-3 & RS-4 Integrated Air Purification Systems

The RS-2 air purification system includes two 1” Dynamic Air Cleaners in a V-Bank configuration to increase filter face area for more effective air cleaning at lower air velocity and are available cased in 1400 and 2400 cfm models.

The RS-3 also includes two 1” Dynamic Air Cleaners in a cased V-Bank configuration with the addition of a 24" Dynamic Sterile Sweep UVC system to provide concentrated UVC light across the surface of the air cleaners. The Sterile Sweep features an oscillating germicidal lamp and parabolic reflector that concentrates UVC rays to kill organisms collected within the air cleaner media.

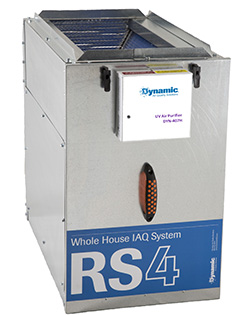

The RS-4 Air Purification System includes a 1" Dynamic Air Cleaner, a high-intensity UVC lamp, and an activated carbon matrix module to collect odors and gas phase contaminants, offering the most effective means of controlling all three elements of indoor air pollution---particulates, biological microbes, and gas-phase odors/VOCs. The RS-4 is available cased in a 1400 cfm model.

RS2

RS3

RS4

Common Applications include any application where packaged rooftop, self contained, or package terminal units are used such as:

  • Animal Shelter
  • Assisted Living
  • Apartments
  • Churches
  • Clean Rooms
  • Food Service
  • Hospitals
  • Hotels
  • Laboratories
  • Medical Offices
  • Nursing Homes
  • Pet Stores
