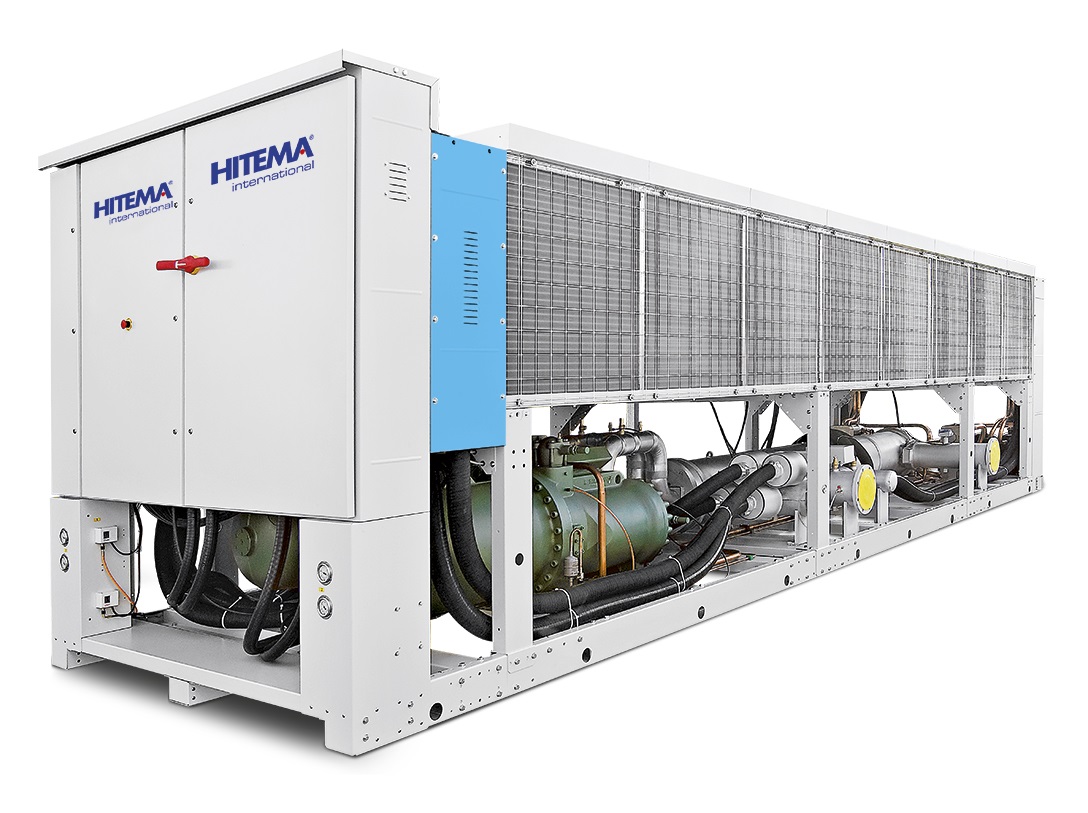

COOLING BIG EVOLUTION
EEF SERIES

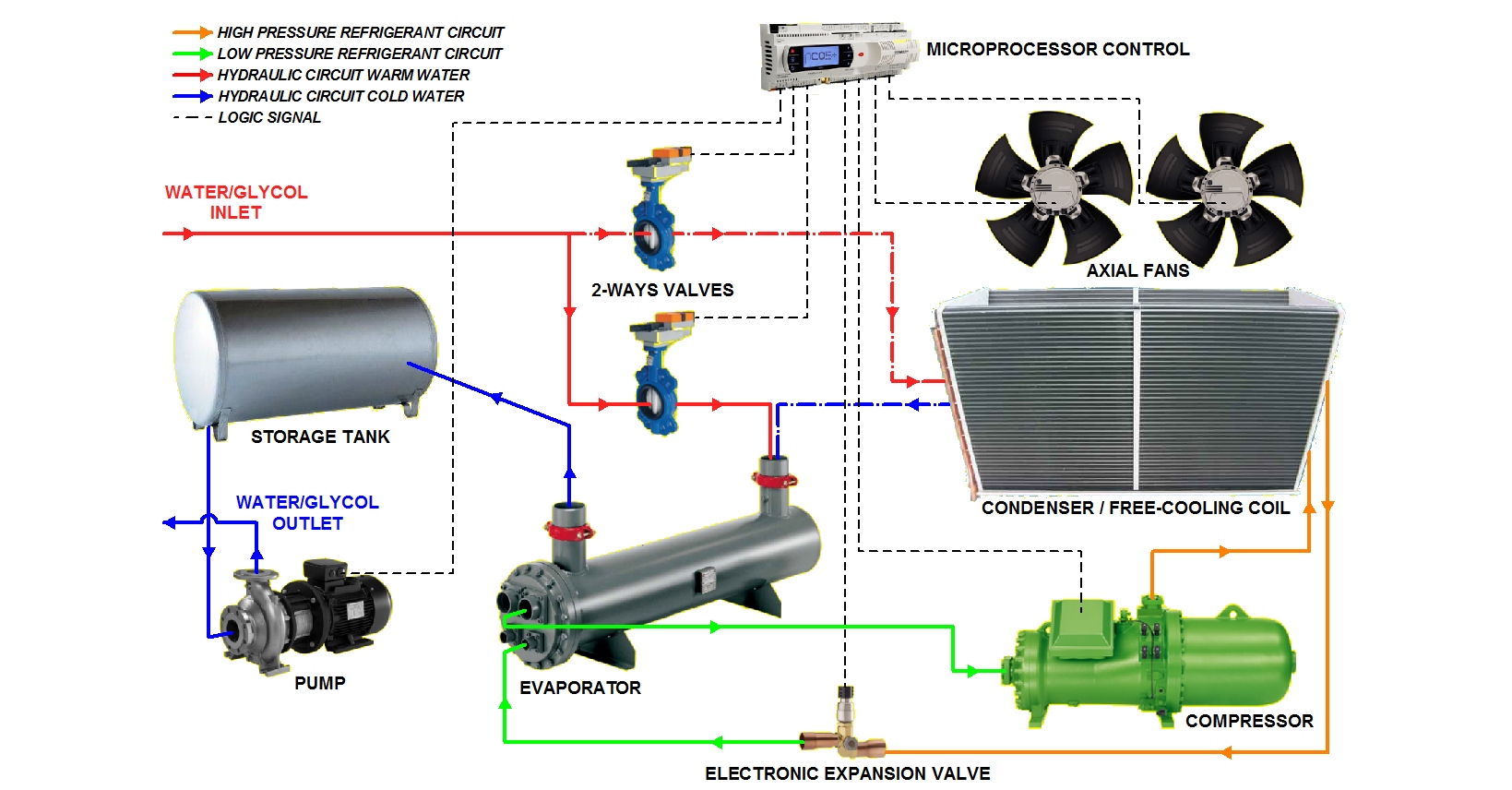

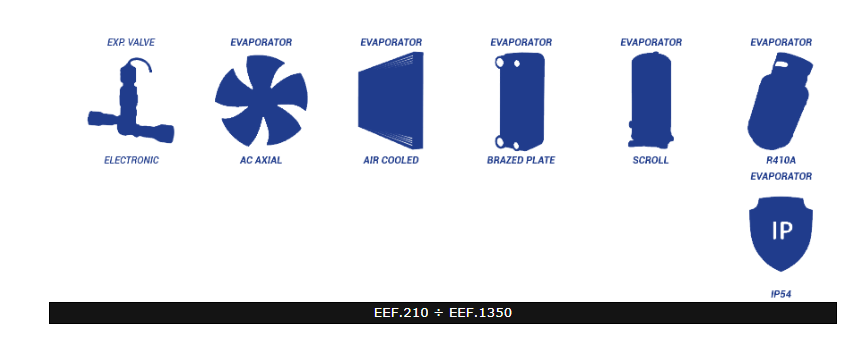

STANDARD CONFIGURATION:
Compressors:Screw

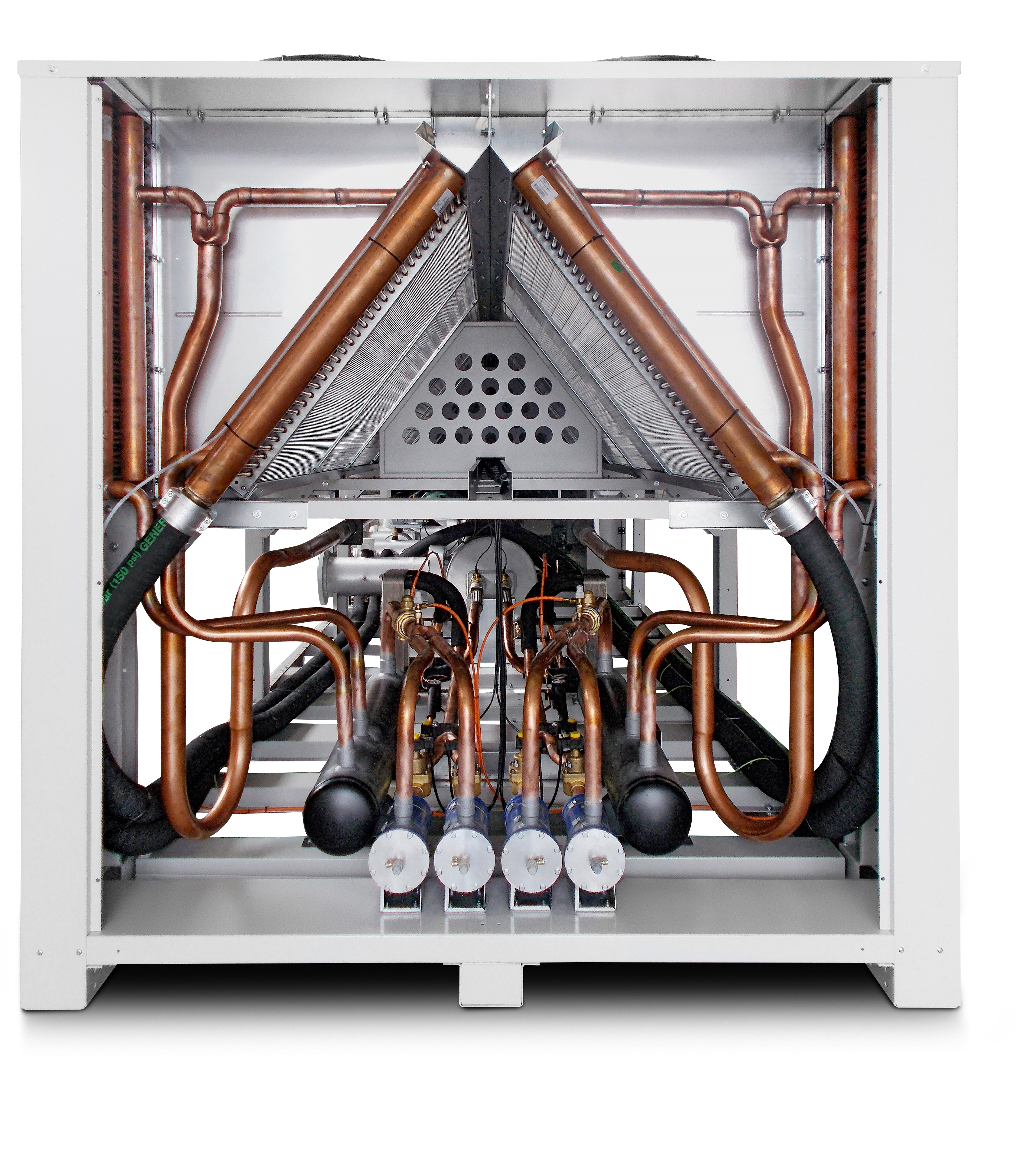

Condenser: Air-Cooled with integrated Free-Cooling coil, with copper tubes and aluminium finned core
Evaporator: Shell & Tube
Expansion Valve: Electronic
Fans: AC axial
Protection Rating: IP54
Refrigerant: R134a, R1234ze on request
ADVANTAGES:
- PHigh cooling capabilities with a wide range of possible applications
- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible
- Advanced control
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
 |
Technical DATA SHEET of EEF series
last updated: 11 January 2018
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - EET/EEF Chillers
last updated: 09 January 2017
|
Download PDF | |
|
Evaluation method of AIR TEMPERATURE FOR 100% FREE-COOLING for not standard working condition - EEF series
last updated: 27 May2015
|
Download PDF | |
|
Hitema ADIABATIC COOLING SYSTEM
last updated: 04 December 2015
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| EEF.210 รท EEF.350 | DIM-EEF-210ST01 REV.01 | SFI-EET-210ST02 REV. 01 |
| EEF.400 รท EEF.470 | DIM-EEF-400ST01 REV.00 | |
| EEF.510 รท EEF.580 | DIM-EEF-510ST01 REV.00 | |
| EEF.650 | DIM-EEF-650ST01 REV.00 | |
| EEF.700 | DIM-EEF-700ST01 REV.00 | |
| EEF.850 | DIM-EEF-850ST01 REV.00 | |
| EEF.1000 | DIM-EEF-1000ST01 REV.00 | |
| EEF.1100 รท EEF.1210 | DIM-EEF-1100ST01 REV.00 | |
| EEF.1350 | DIM-EEF-1350ST01 REV.00 |
GALLERY:
