PROCESS COOLING APPLICATION

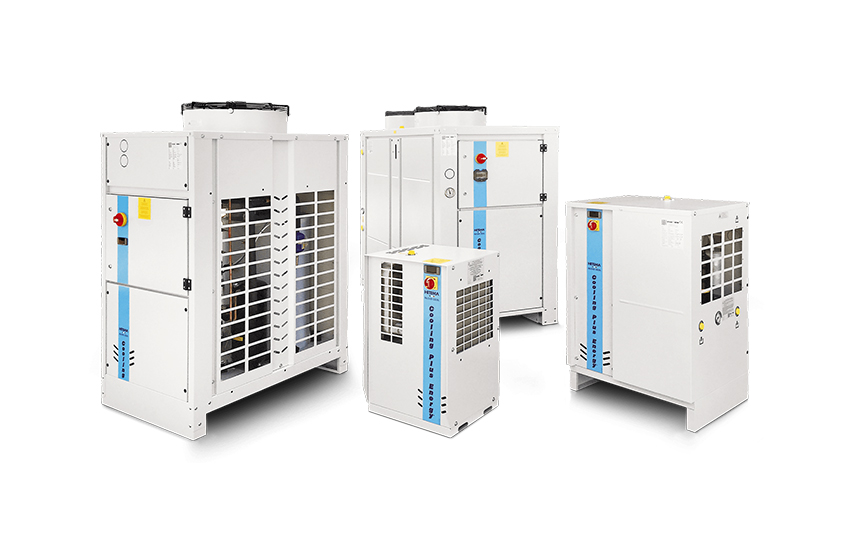

ENR SERIES

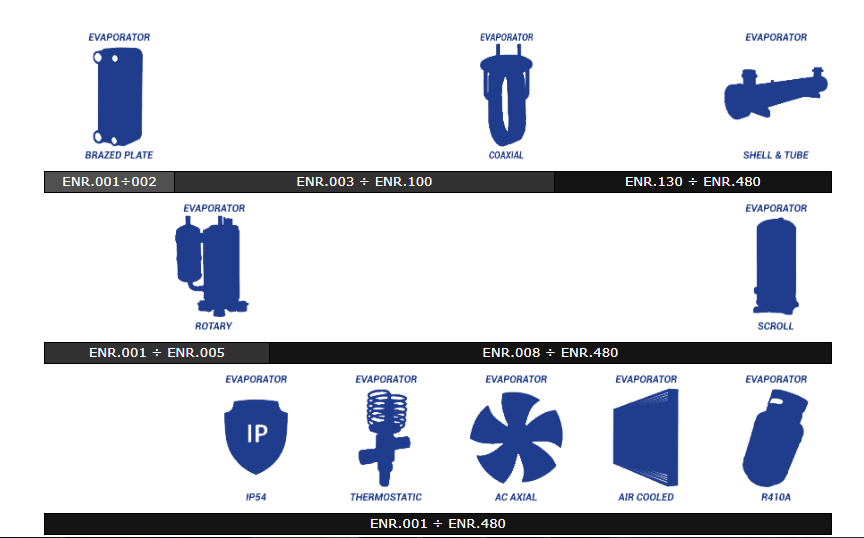

STANDARD CONFIGURATION:

Compressors:Rotary (ENR.001÷ENR.005) or Scroll (ENR.008÷ENR.480)

Condenser: Air-Cooled, with copper tubes and aluminium finned core

Evaporator: Brazed plate (ENR.001÷ENR.002), Coaxial (ENR.003÷ENR.100) or Shell & Tube (ENR.130÷ENR.480)

Expansion Valve: Thermostatic

Fans: AC axial

Protection Rating: IP54

Refrigerant: R410A

ADVANTAGES:
  • Reliability and continuity of operation also in severe service conditions

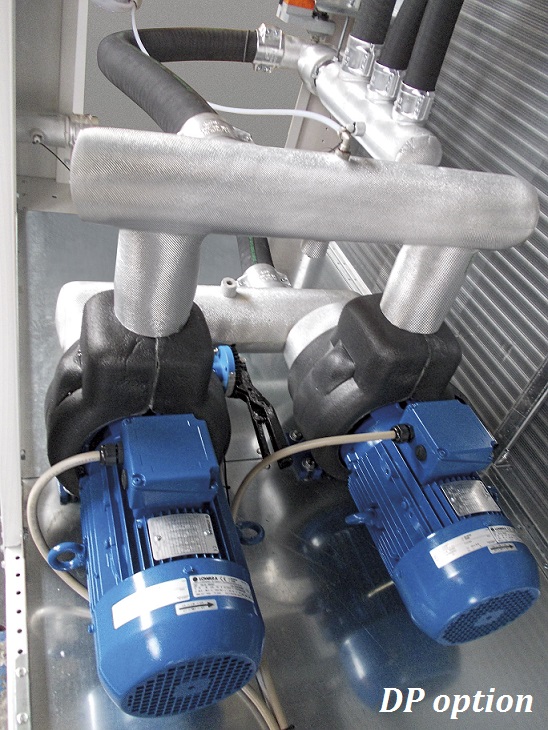

  • Integrated hydraulic module with tank as a standard (inverter pumps on request)
  • Stainless steel hydraulic circuit on request
  • Low noise design available
  • Free-cooling design is possible

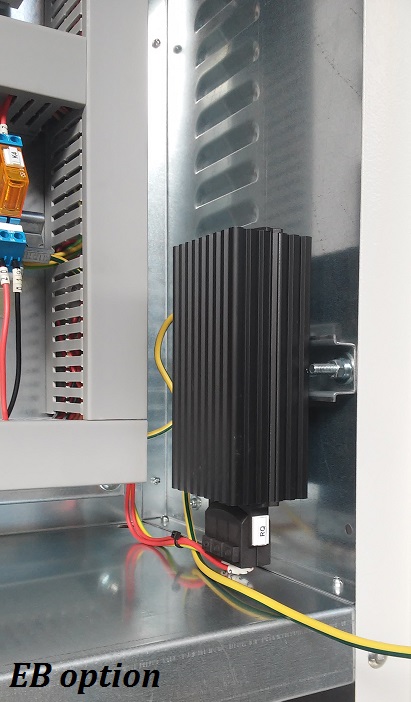

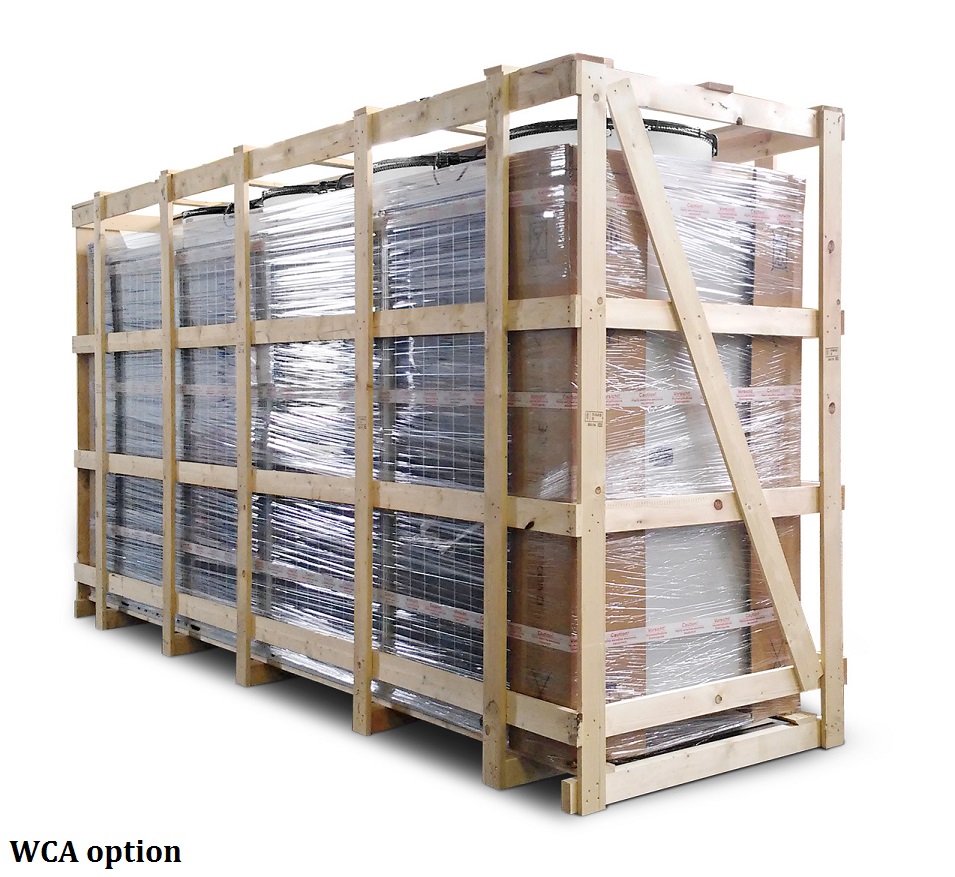

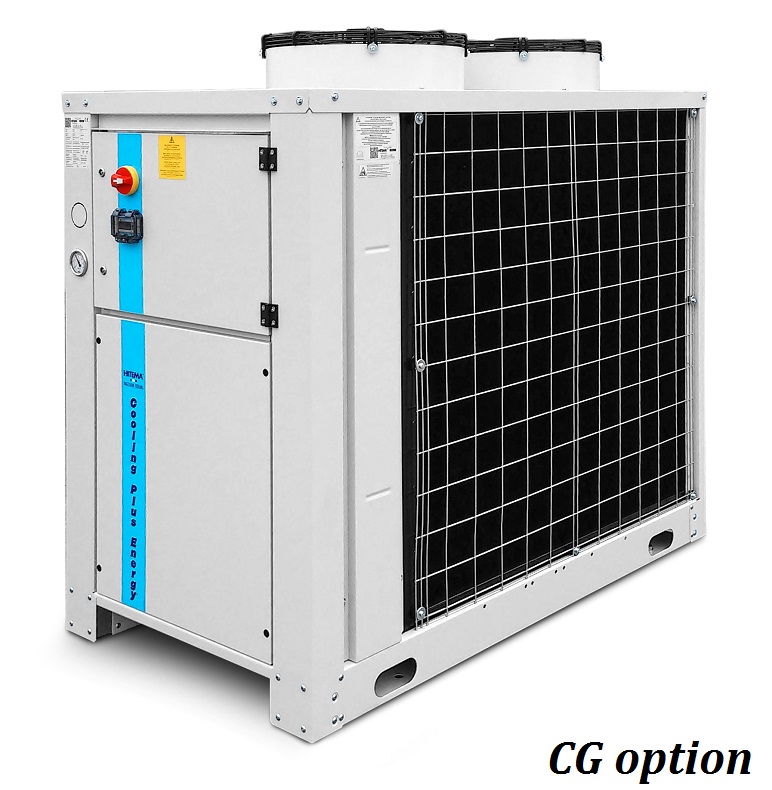

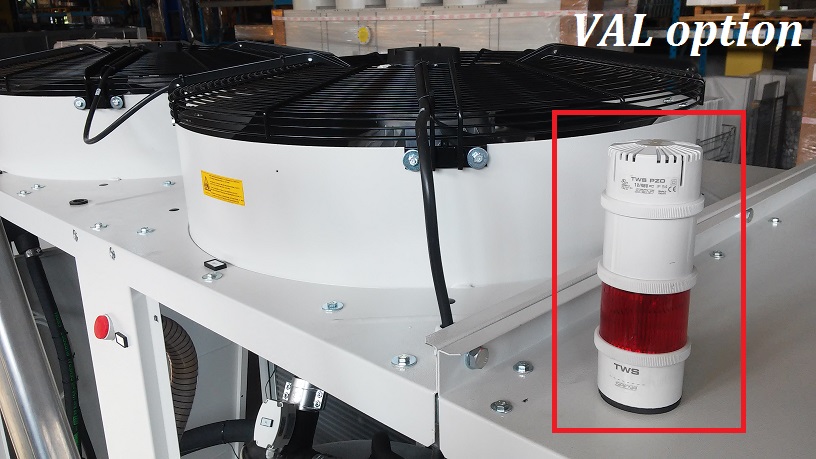

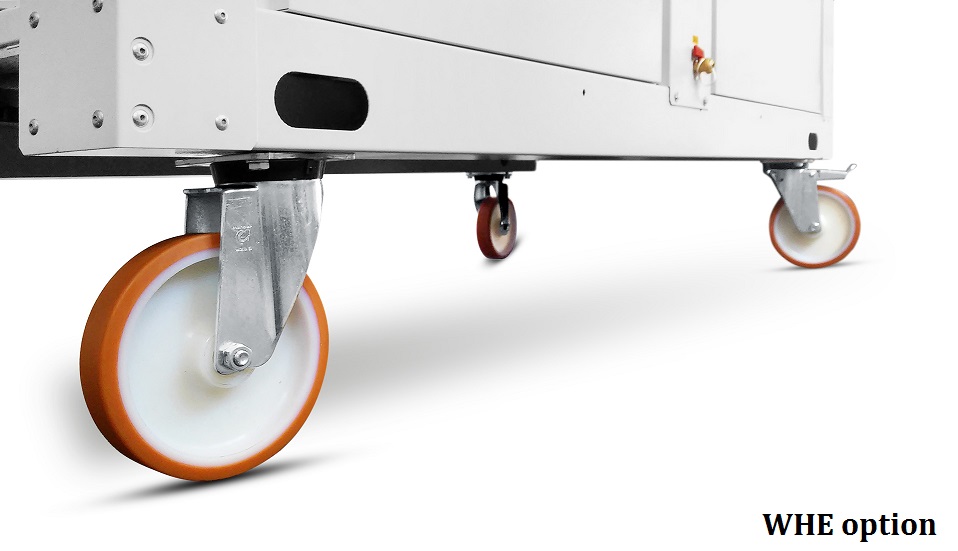

OPTIONAL ON REQUEST:
Link

AUTOMOTIVE

FOOD & BEVERAGE

WINERIES

AGRICULTURE & FARMING

MACHINE TOOLS

PLASTICS & RUBBER

CHEMICAL & PHARMACEUTICAL

download icon grey
Technical DATA SHEET of ENR series
last updated: 09 January 2018
 Download PDF
download icon grey
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - ENR/ENRF Chillers
last updated: 04 July 2016
 Download PDF
download icon grey

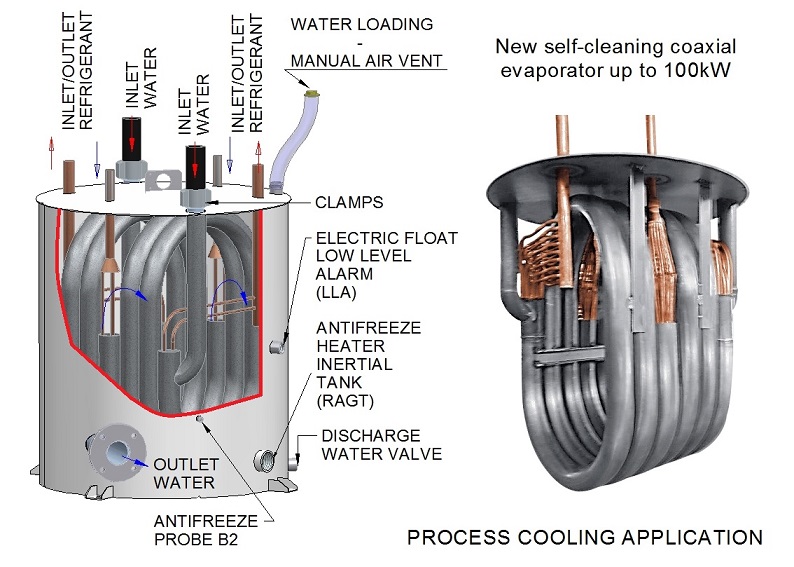

Advantages of Hitema COAXIAL EVAPORATOR
last updated: 6 October 2016
 Download PDF
download icon grey
Differences between water tank OPEN CIRCUIT and CLOSED CIRCUIT
last updated: 13 April 2016
 Download PDF
download icon grey
TECHNICAL DRAWINGS for standard units:
Models

 Dimensional Drawing

 P&ID

ENR.001 ÷ ENR.002 DIM-ENR-001ST02 REV.00 SFI-ENR-001ST01 REV.06
ENR.003 ÷ ENR.005 DIM-ENR-005ST01 REV.05 SFI-ENR-003ST01 REV.04

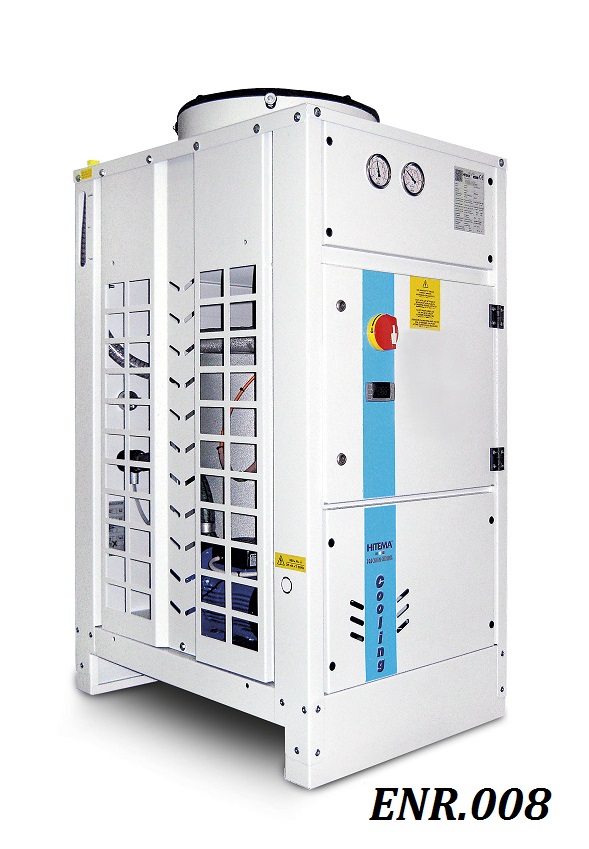

ENR.008 ÷ ENR.016 DIM-ENR-008ST03 REV.01 SFI-ENR-008ST01 REV.07
ENR.018 ÷ ENR.022 DIM-ENR-018ST01 REV.02
ENR.030 ÷ ENR.055 DIM-ENR-030ST01 REV.08 SFI-ENR-030ST01 REV.10
ENR.061 ÷ ENR.100 DIM-ENR-061ST01 REV.01 SFI-ENR-061ST01 REV.14
ENR.130 ÷ ENR.185 DIM-ENR-130ST01 REV.01 SFI-ENR-130ST01 Rev.16

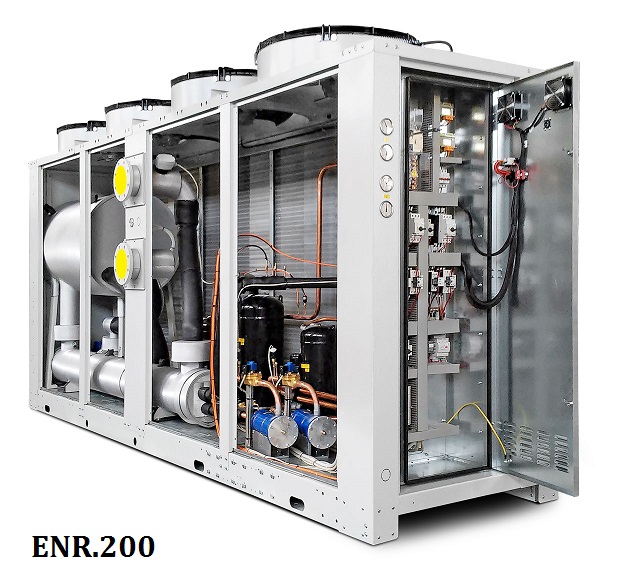

ENR.200 DIM-ENR-200ST01 Rev.01 SFI-ENR-230ST01 Rev.16
ENR.230 ÷ ENR.340 DIM-ENR-230ST01 REV.02
ENR.370 ÷ ENR.480 DIM-ENR-370ST01 REV.02

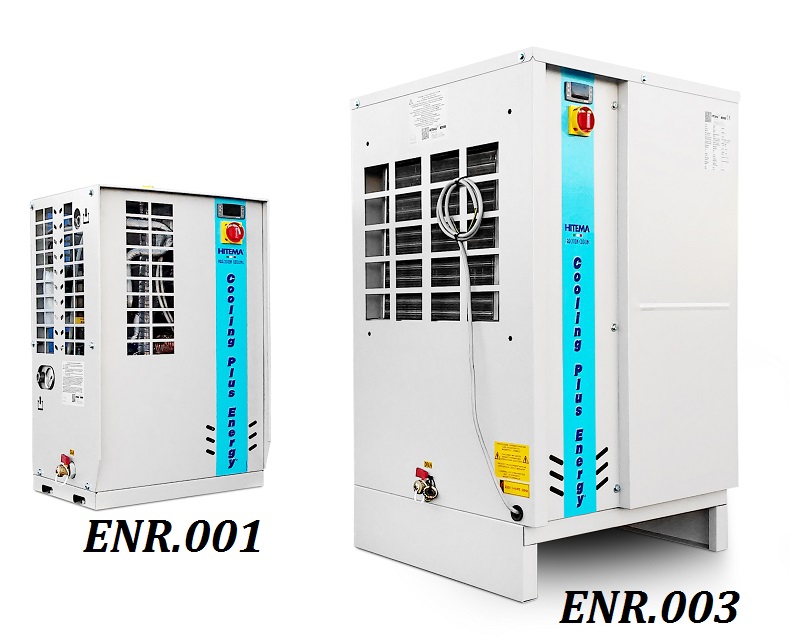

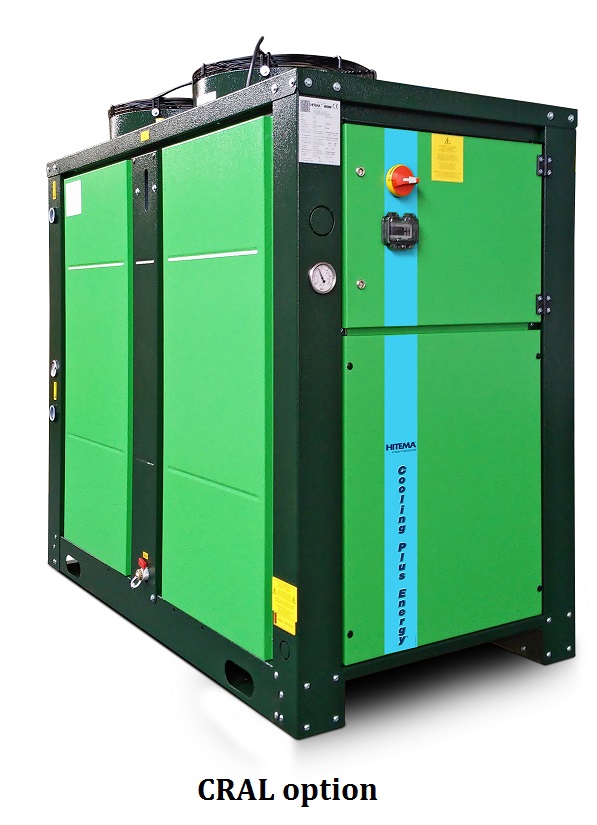

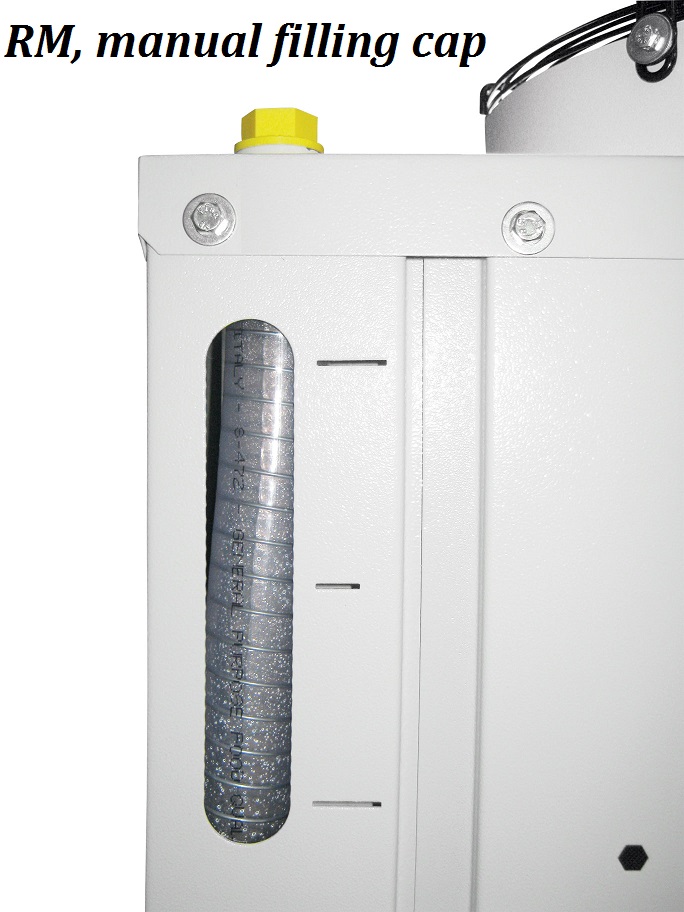

GALLERY:
VIDEO:
