MULTI SCROLL
SBS SERIES

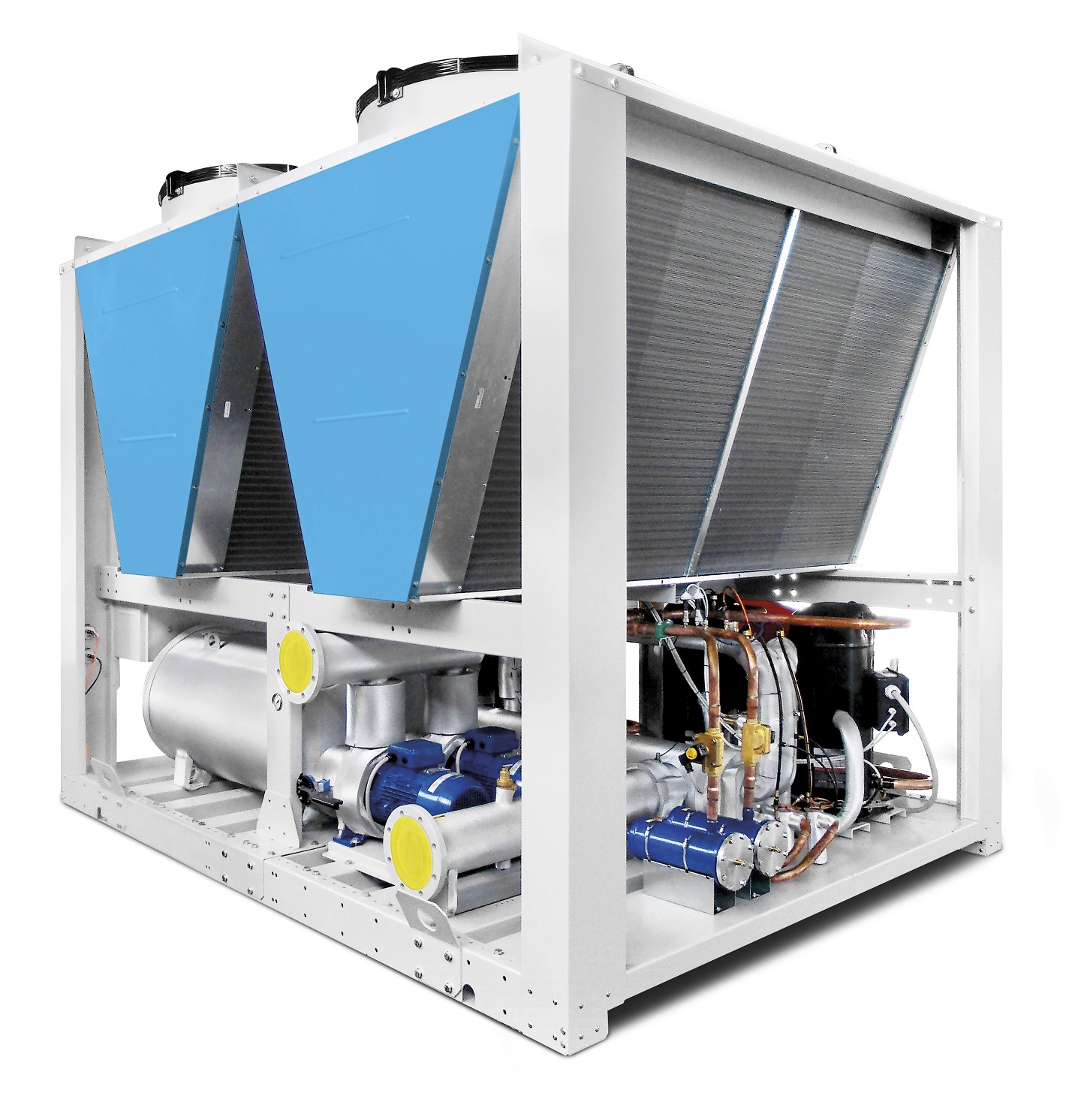

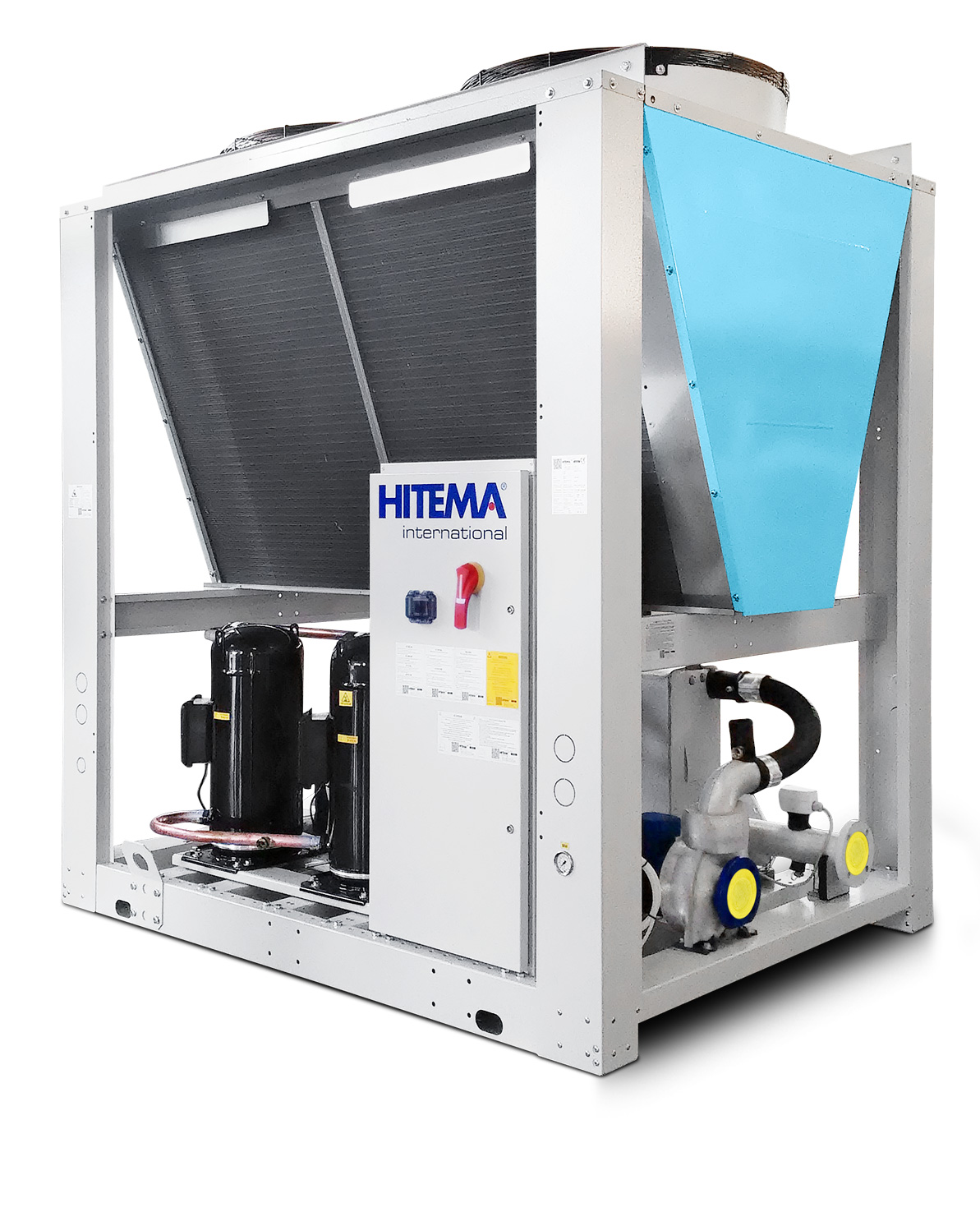

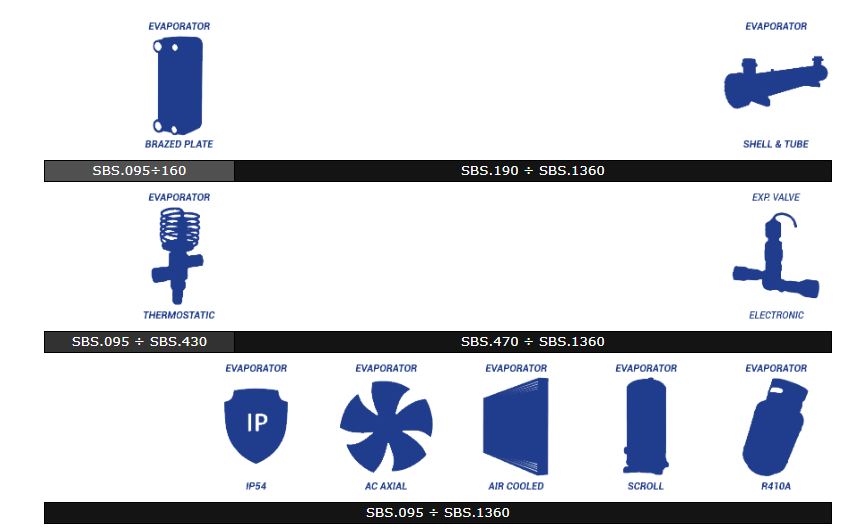

STANDARD CONFIGURATION:
Compressors:Scroll

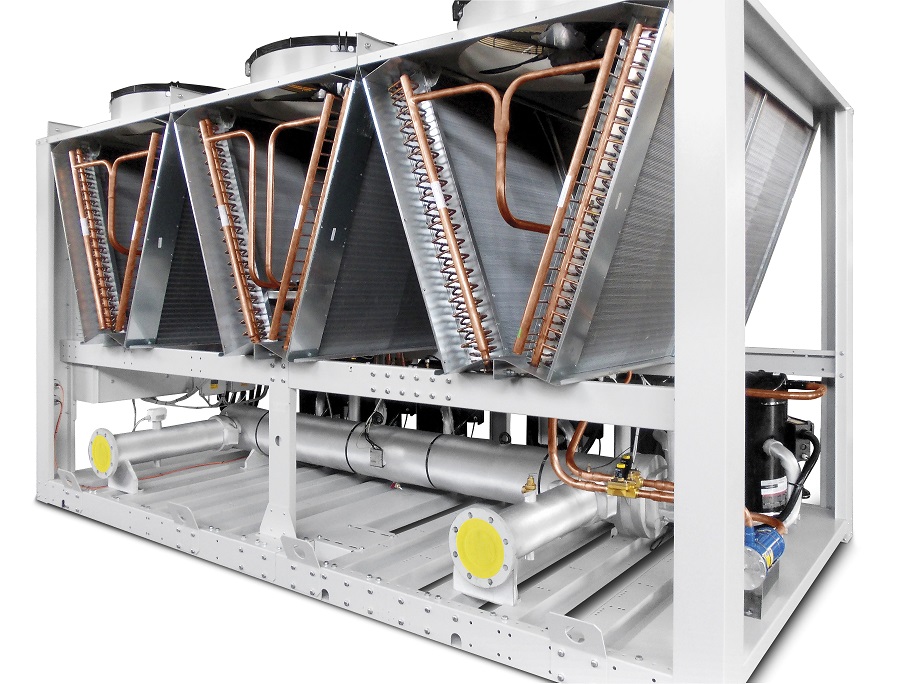

Condenser: Air-Cooled, with copper tubes and aluminium finned core

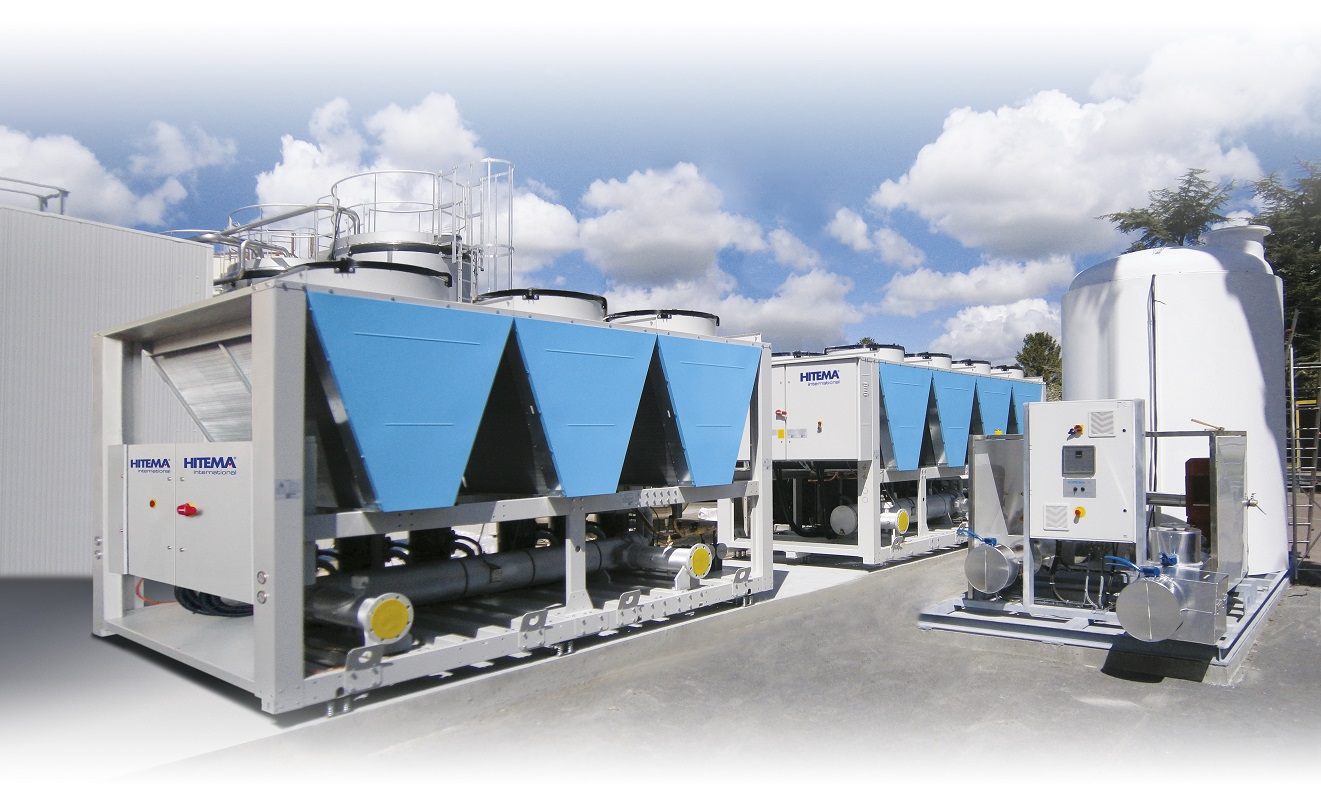

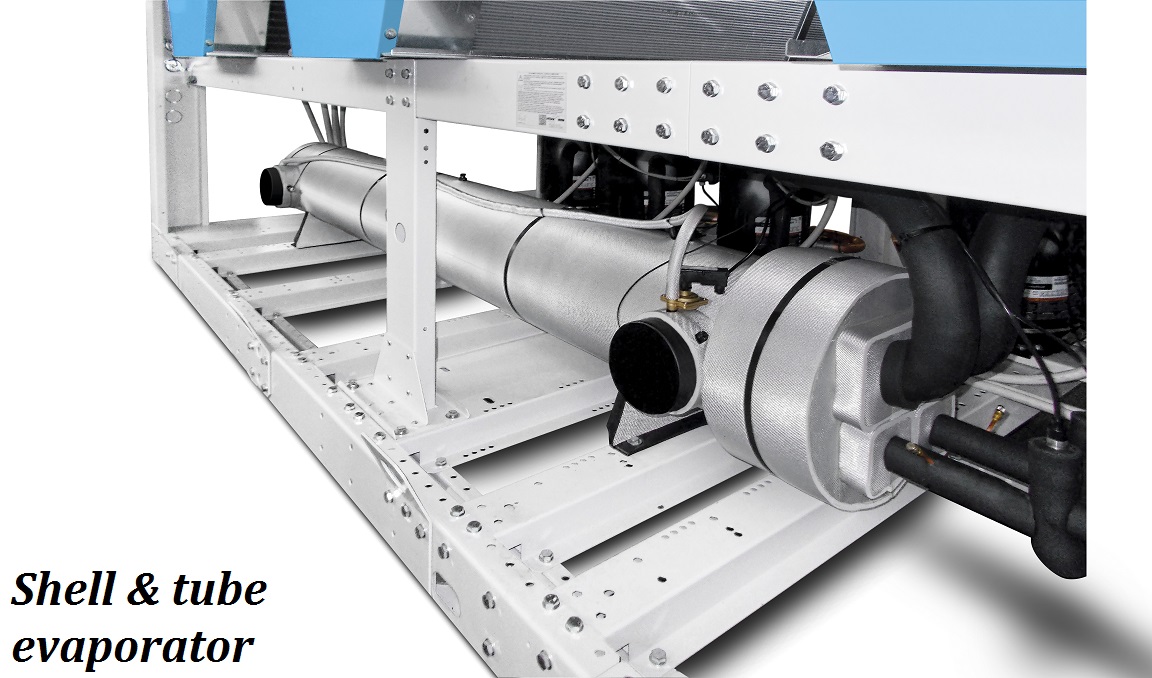

Evaporator: Brazed plate (SBS.095÷SBS.160) or Shell & Tube (SBS.190÷SBS.1360)
Expansion Valve: Thermostatic (SBS.095÷SBS.430) or Electronic (SBS.470÷SBS.1360)c
Fans: AC axial
Protection Rating: IP54
Refrigerant: R410A
ADVANTAGES:
- Modular construction of the condensers: extreme design flexibility
- Multiple compressor design: extreme reliability with great control capacity
- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Free-cooling design is possible
- Different control capabilities on the basis of specific application

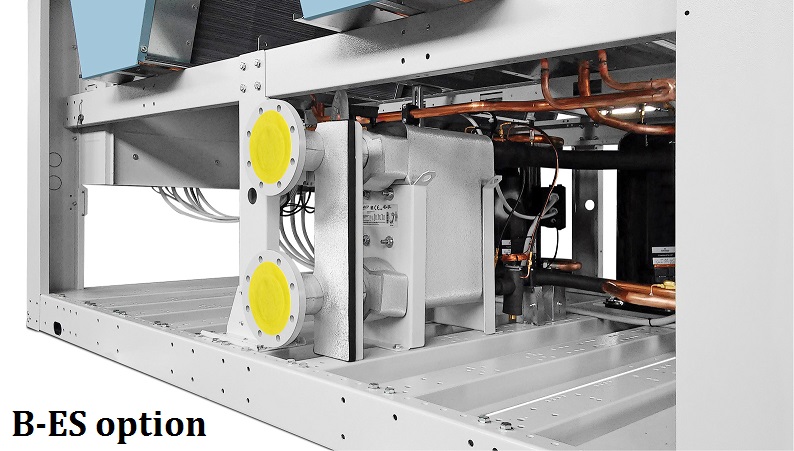

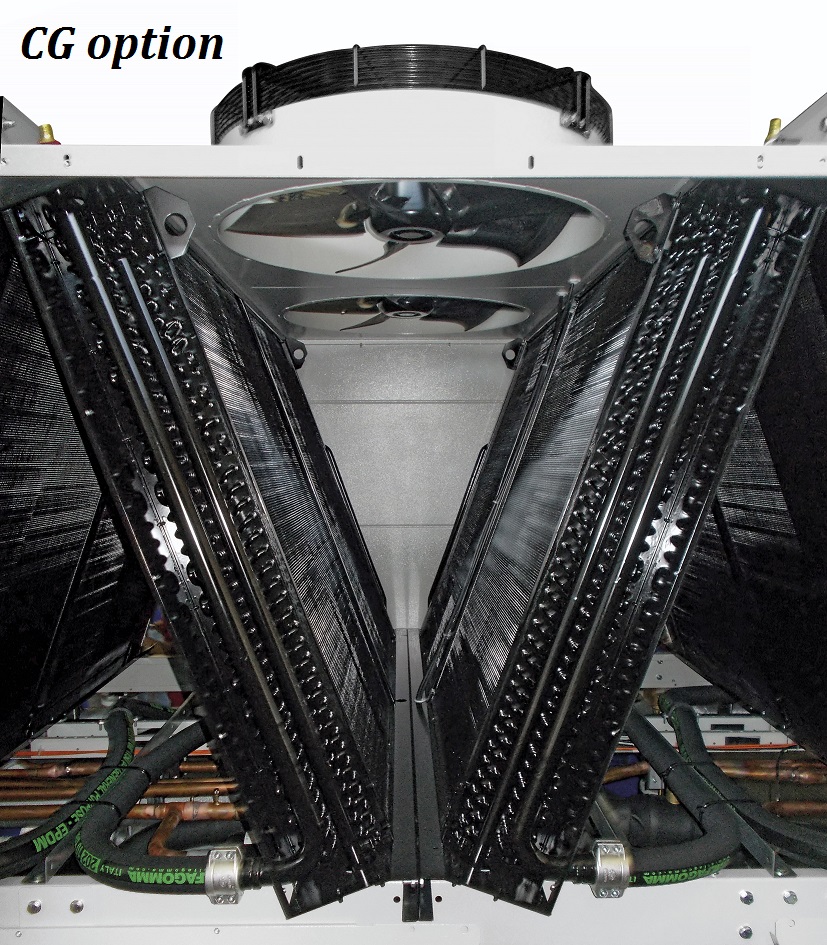

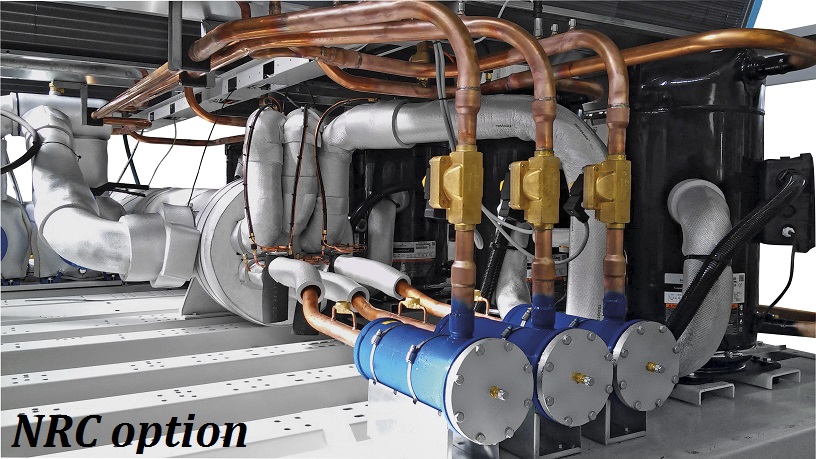

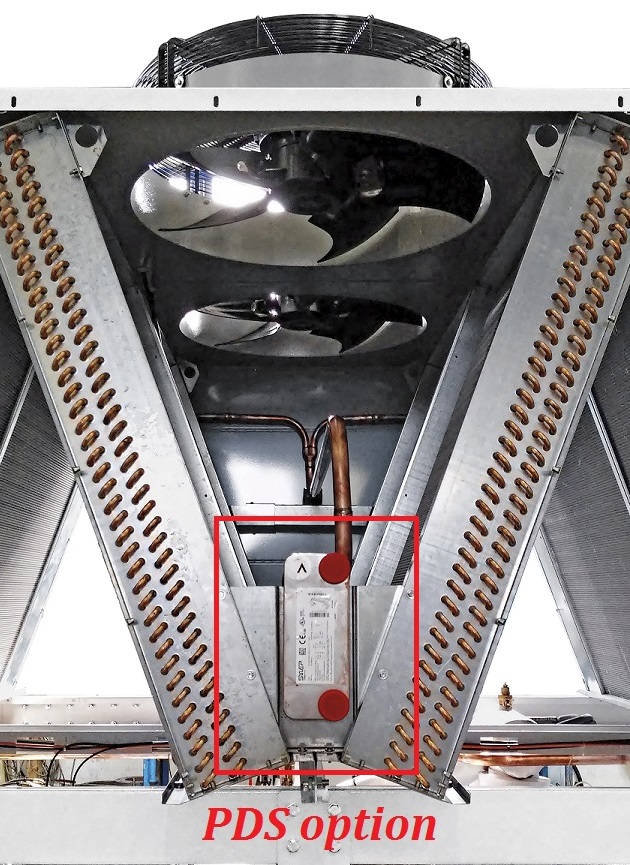

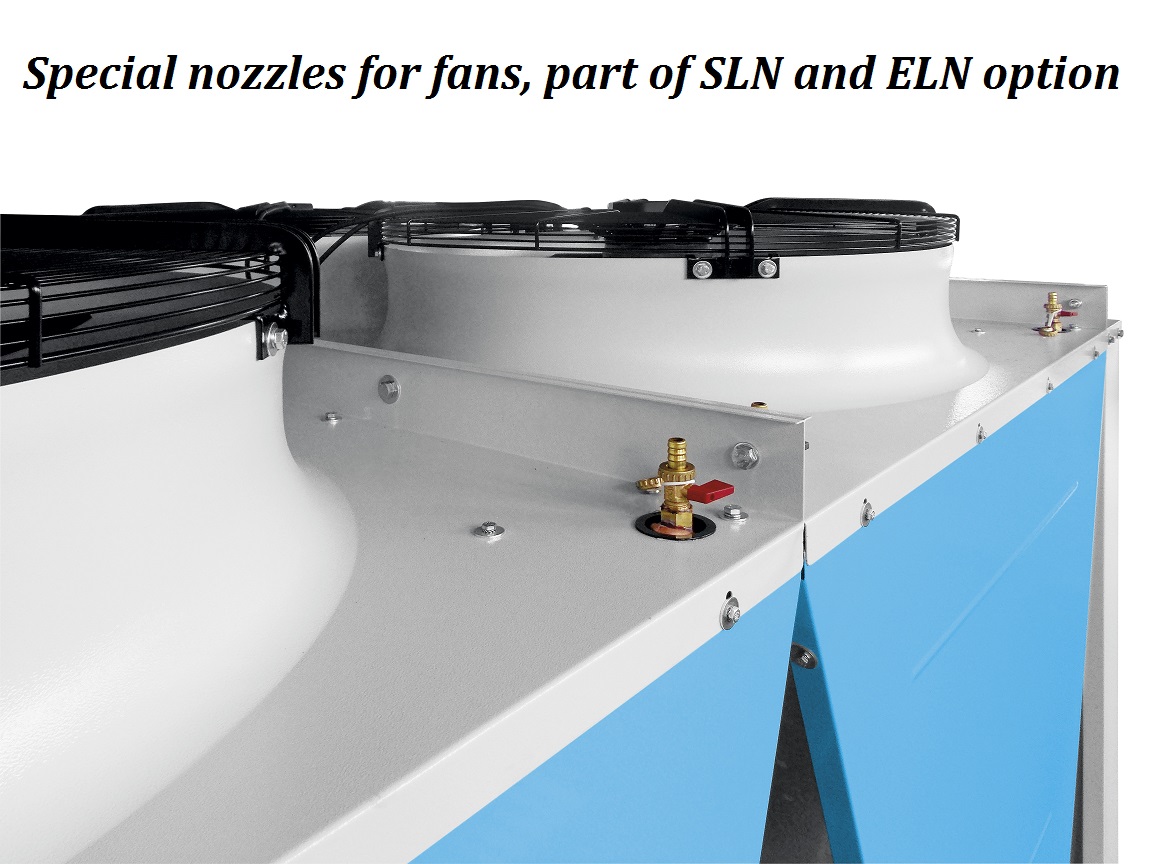

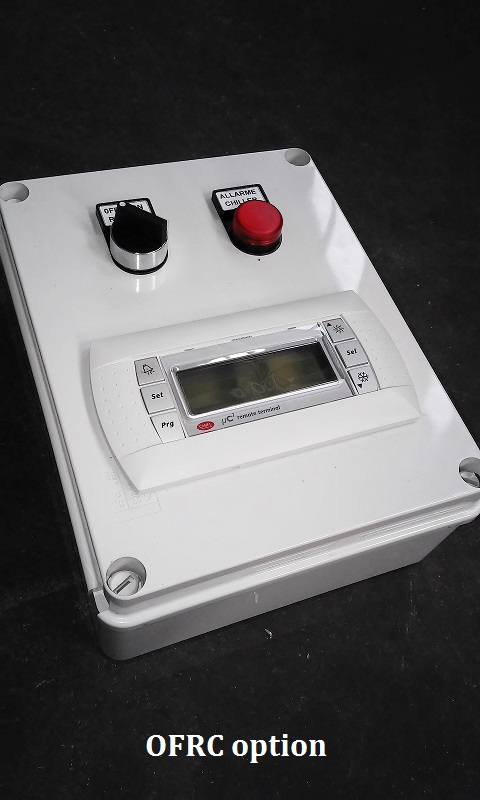

OPTIONAL ON REQUEST:
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
 |
Technical DATA SHEET of SBS series
last updated: 09 August 2018
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - SBS/SBSF Chillers
last updated: 21 September 2016
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
| |
| Models
|
Dimensional Drawing
|
P&ID
|
| SBS.095 ÷ SBS.160 | DIM-SBS-095ST01 REV.01 | SFI-SBS-095ST01 REV.00 |
| SBS.190 ÷ SBS.330 | DIM-SBS-190ST01 REV.01 | SFI-SBS-190ST01 REV.01 |
| SBS.380 | DIM-SBS-380ST01 REV.01 | SFI-SBS-380ST01 REV.00 |
| SBS.430 | SFI-SBS-430ST02 REV.01 | |
| SBS.470 | SFI-SBS-470ST01 REV.00 | |
| SBS.530 ÷ SBS.660 | DIM-SBS-530ST01 REV.01 | SFI-SBS-530ST01 REV.00 |
| SBS.720 | DIM-SBS-720ST01 REV.01 | SFI-SBS-720ST01 REV.00 |
| SBS.840 ÷ SBS.1030 | DIM-SBS-840ST01 Rev.01 | SFI-SBS-840ST01 REV.01 |
| SBS.1230 | DIM-SBS-1230ST01 REV.01 | SFI-SBS-1230ST01 REV.00 |
