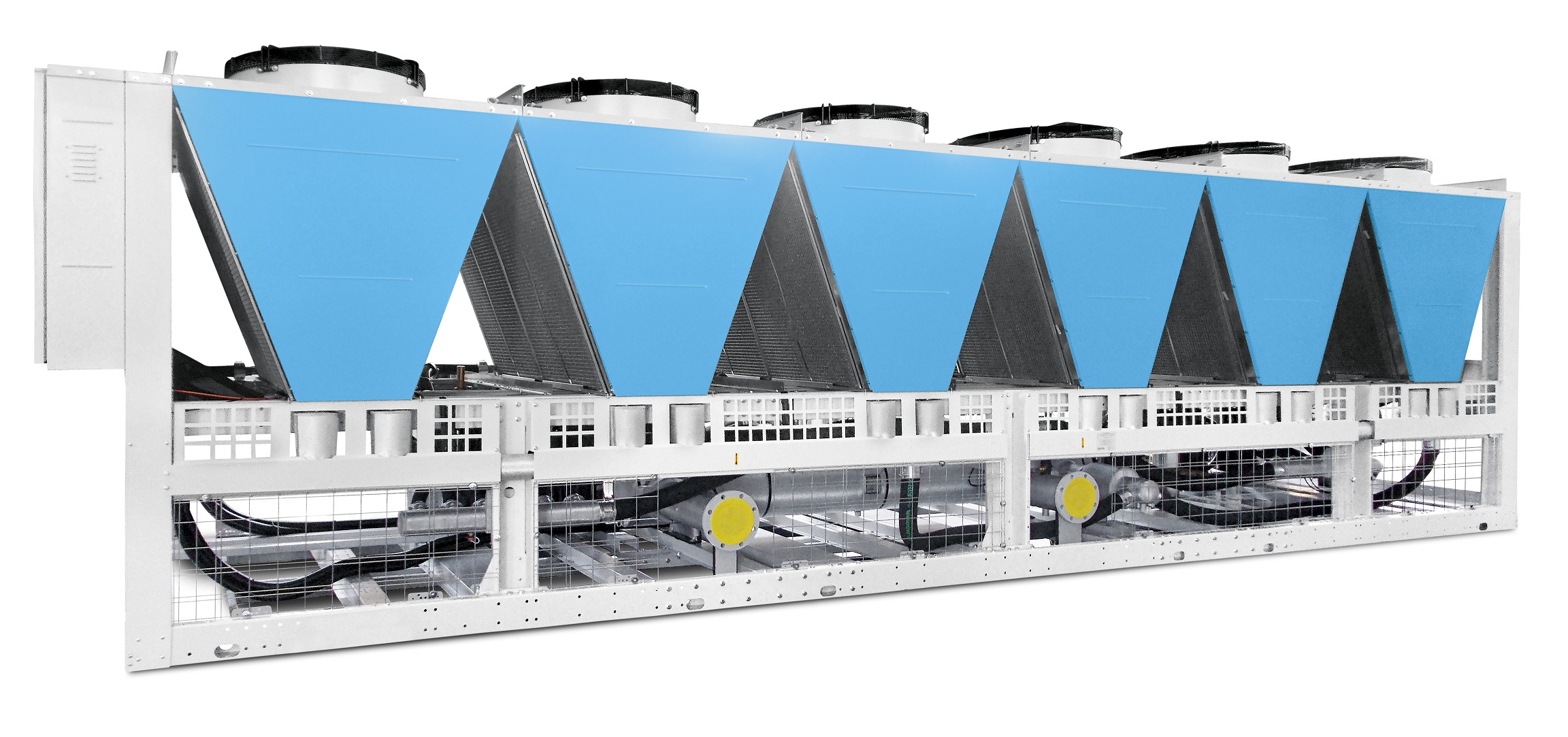

MULTI SCROLL
SBSF SERIES

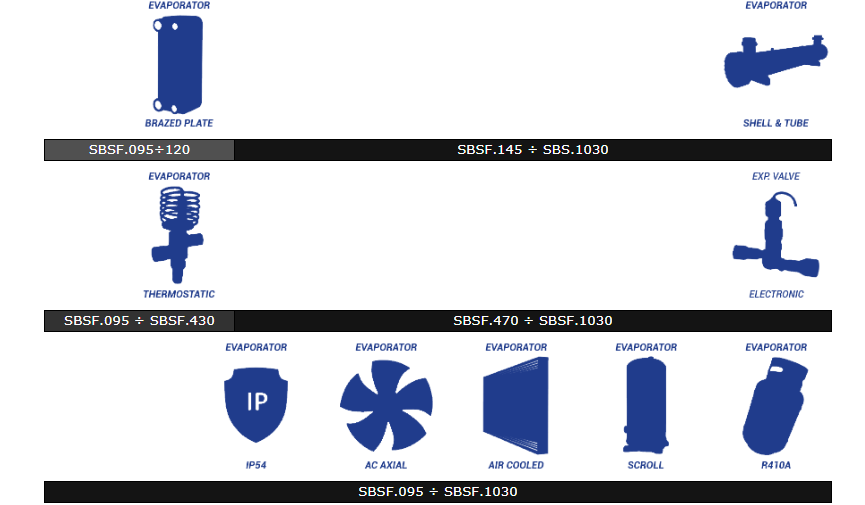

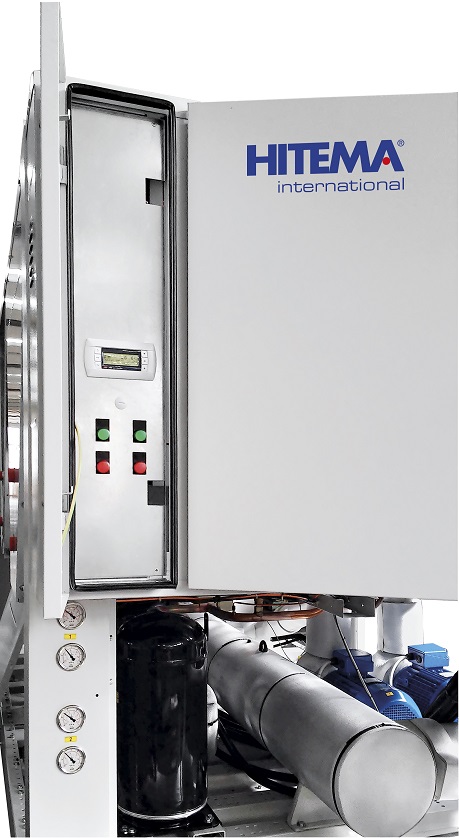

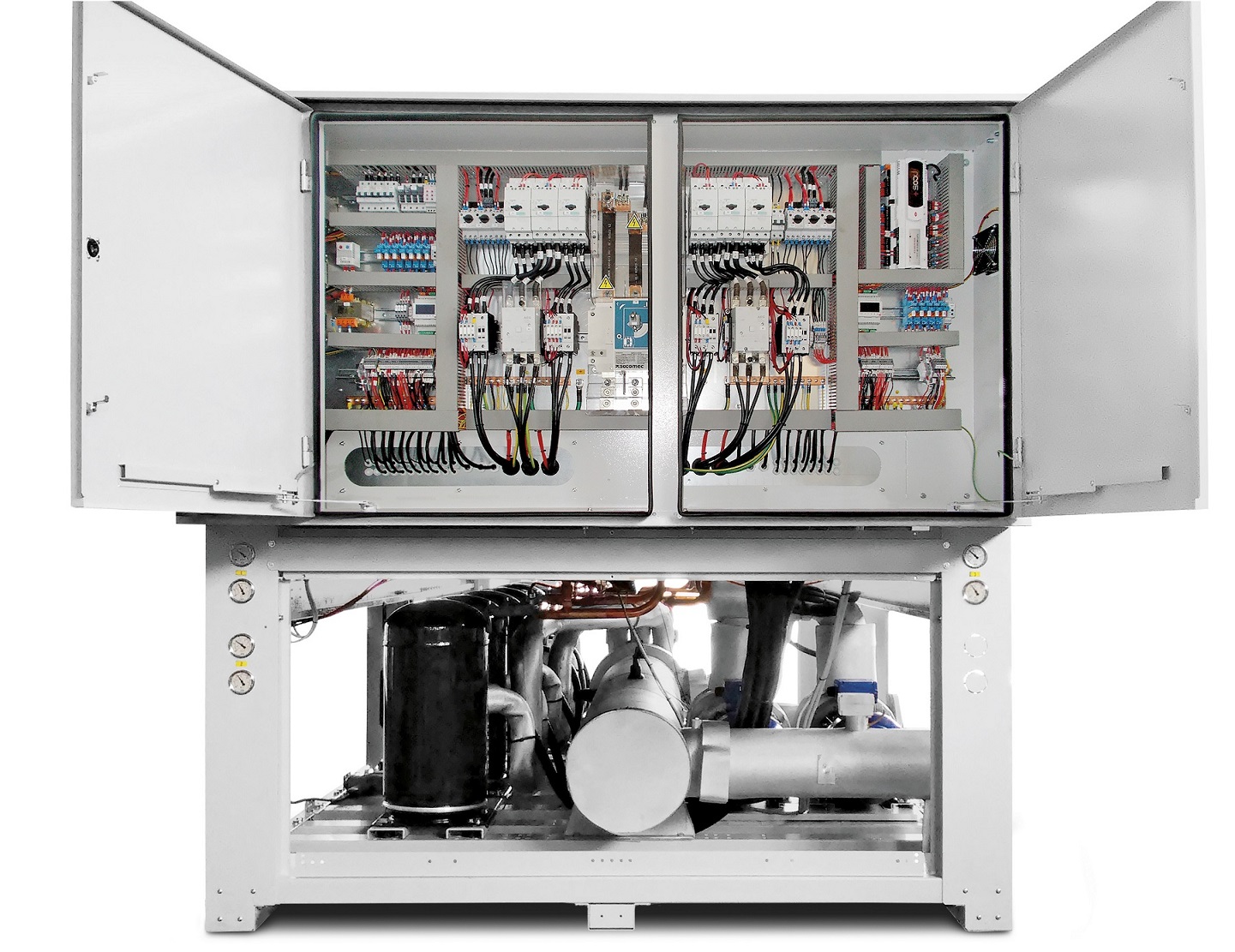

STANDARD CONFIGURATION:
Compressors:Scroll
Condenser: Air-Cooled with integrated Free-Cooling coil, with copper tubes and aluminium finned core
Evaporator: Brazed plate (SBSF.095÷SBSF.120) or Shell & Tube (SBSF.145÷SBSF.1030)
Expansion Valve: Thermostatic (SBSF.095÷SBSF.430) or Electronic (SBSF.470÷SBSF.1030)
Fans: AC axial
Protection Rating: IP54
Refrigerant: R410A
ADVANTAGES:
- Modular construction of the condensers: extreme design flexibility
- Multiple compressor design: extreme reliability with great control capacity

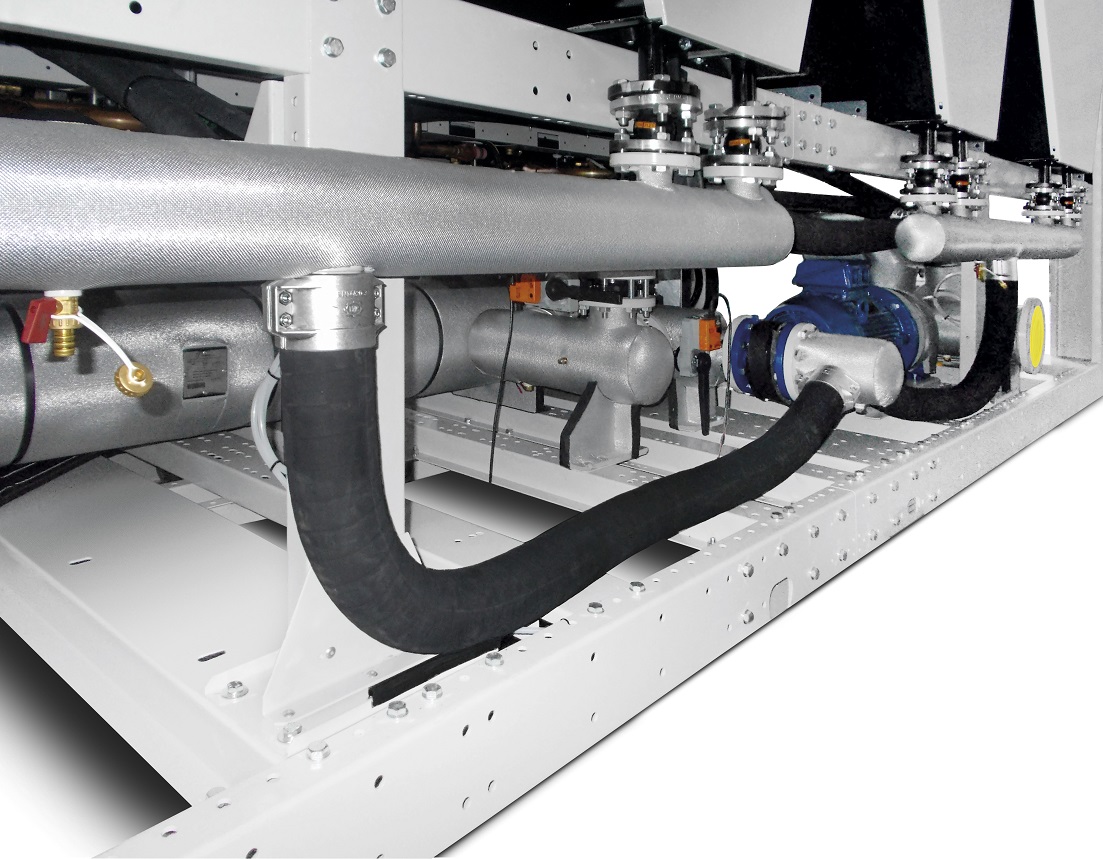

- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Free-cooling design is possible
- Different control capabilities on the basis of specific application
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
AIR CONDITIONING
 |
Technical DATA SHEET of SBSF series
last updated: 09 August 2018
|
Download PDF | |
|
Technical DATA SHEET of optimized free-cooling version SBSF-OPT
last updated: 10 August2018
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - SBS/SBSF Chillers
last updated: 21 September 2016
|
Download PDF | |
|
Evaluation method of AIR TEMPERATURE FOR 100% FREE-COOLING for not standard working condition - SBSF series
last updated: 27 May 2015
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
| |
| Models
|
Dimensional Drawing
|
P&ID
|
| SBSF.095 ÷ SBSF.120 | DIM-SBSF-095ST01 REV.00 | SFI-SBS-095ST01 REV.00 |
| SBSF.145 ÷ SBSF.160 | DIM-SBSF-145ST01 REV.01 |
SFI-SBSF-145ST01 REV.00 |
| SBSF.190 ÷ SBSF.240 | SFI-SBS-190ST01 REV.01 | |
| SBSF.290 ÷ SBSF.330 | DIM-SBSF-290ST01 REV.01 | SFI-SBS-380ST01 REV.00 |
| SBSF.380 | DIM-SBSF-380ST01 REV.01 |
SFI-SBSF-380ST01 REV.00 |
| SBSF.430 | SFI-SBSF-430ST01 REV.01 | |
| SBSF.470 | SFI-SBS-530ST01 REV.00 | |
| SBSF.530 ÷ SBSF.610 | DIM-SBSF-530ST01 REV.01 | SFI-SBS-720ST01 REV.00 |
| SBSF.660 ÷ SBSF.720 | DIM-SBSF-660ST01 REV.01 | SFI-SBS-840ST01 REV.01 |
| SBSF.660/F14 ÷ SBSF.720/F14 | DIM-SBSF-660ST02 Rev.00 | SFI-SBS-1030ST01 REV.00 |
| SBSF.840 ÷ SBSF.1030 | DIM-SBSF-840ST01 REV.01 | SFI-SBSF-930ST01 REV.00 |
