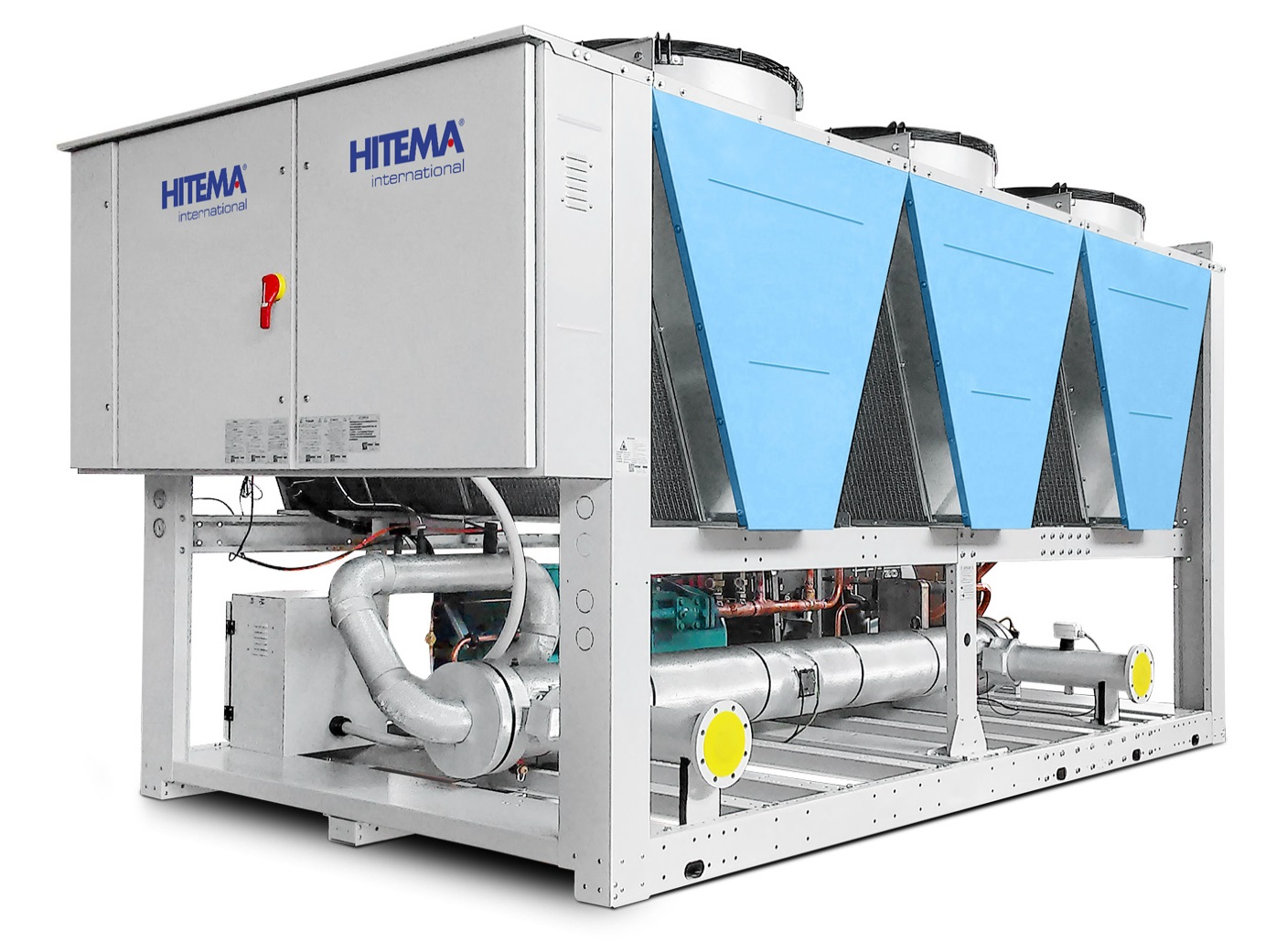

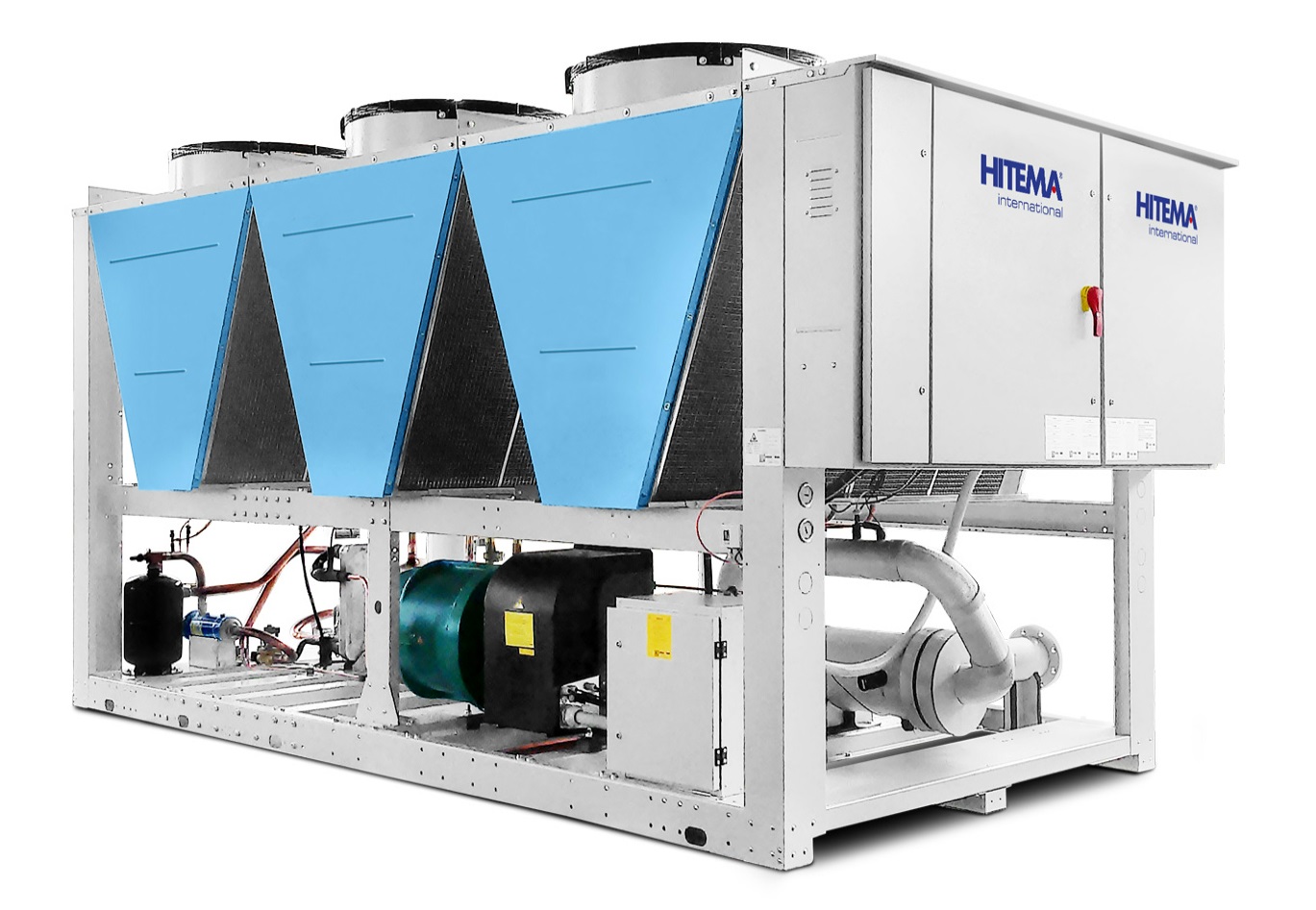

COOLING BIG EVOLUTION
ISV SERIES

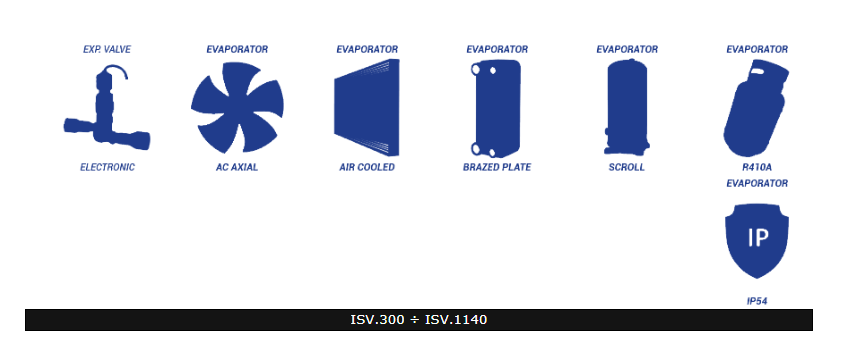

STANDARD CONFIGURATION:

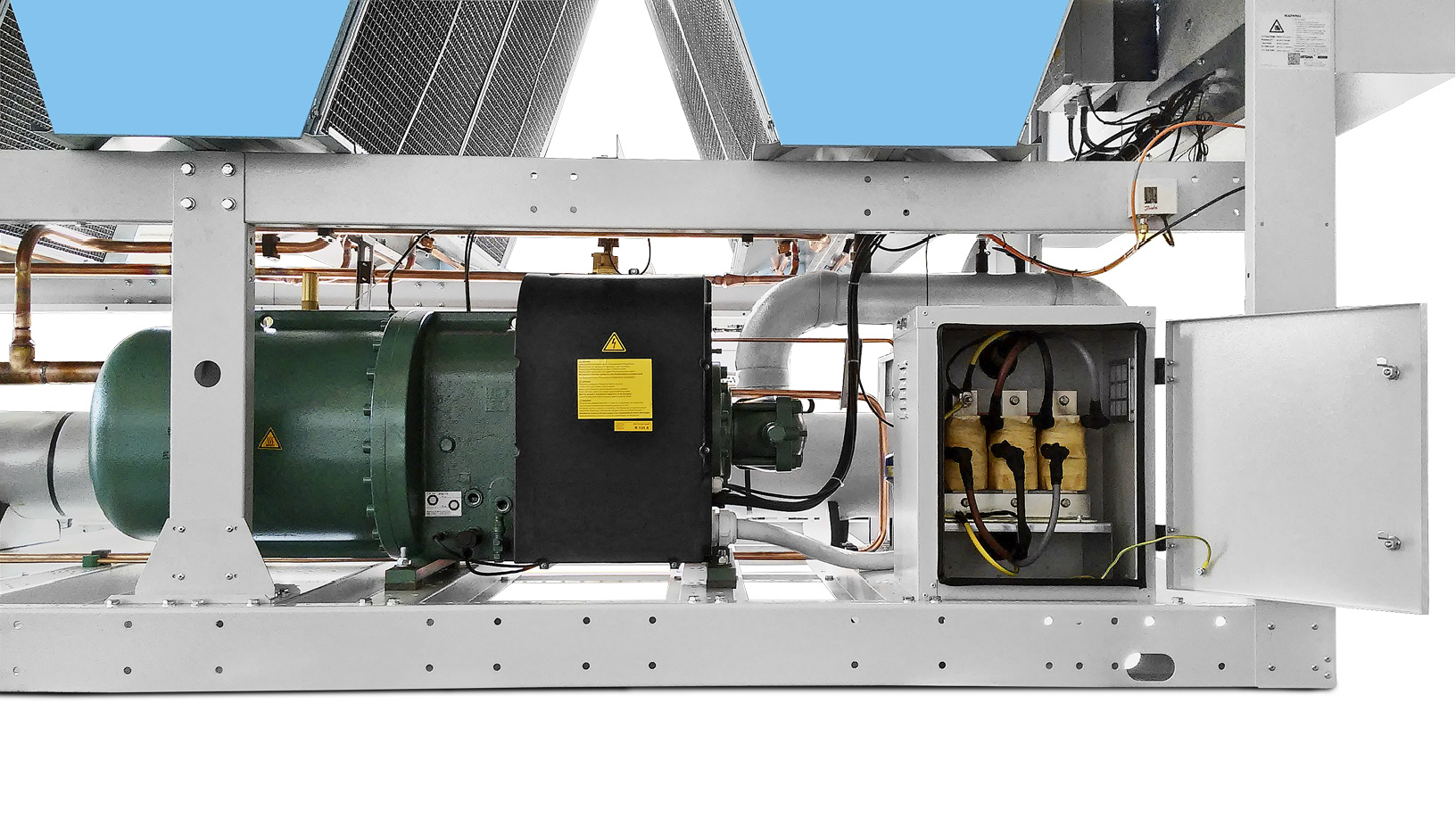

Compressors:VSD Screw
Condenser: Air-Cooled, with copper tubes and aluminium finned core
Evaporator: Shell & Tube
Expansion Valve: Electronic

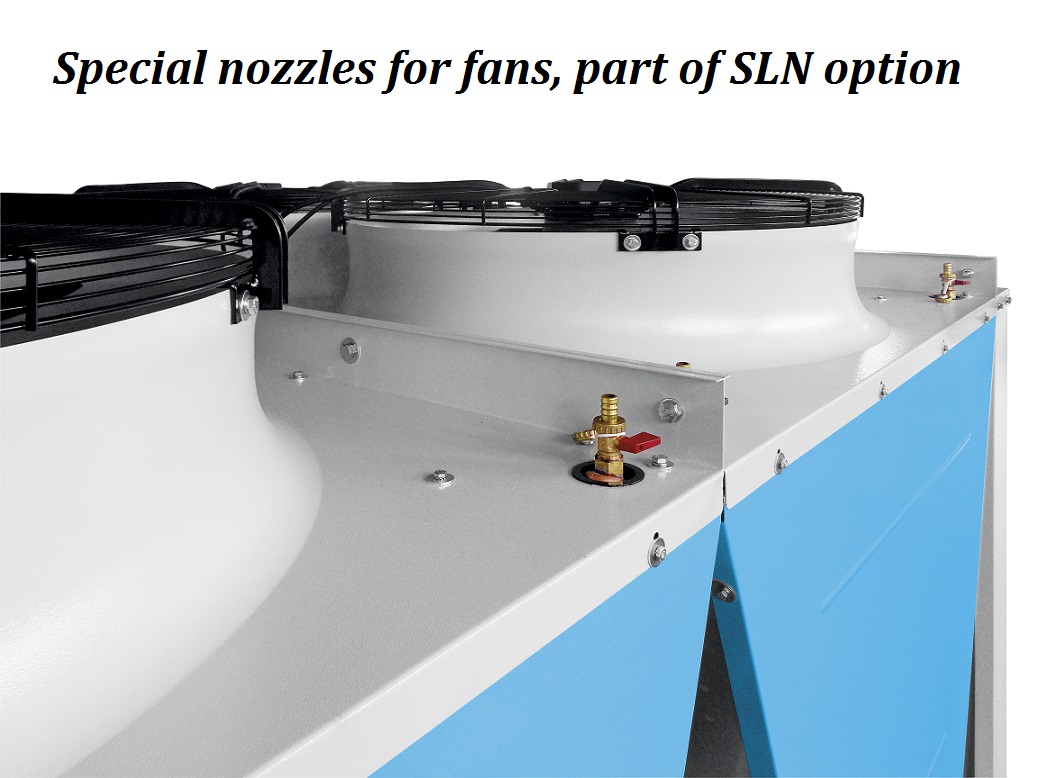

Fans: AC axial
Protection Rating: IP54
Refrigerant: R134a
ADVANTAGES:
- PHigh cooling capabilities with a wide range of possible applications
- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible

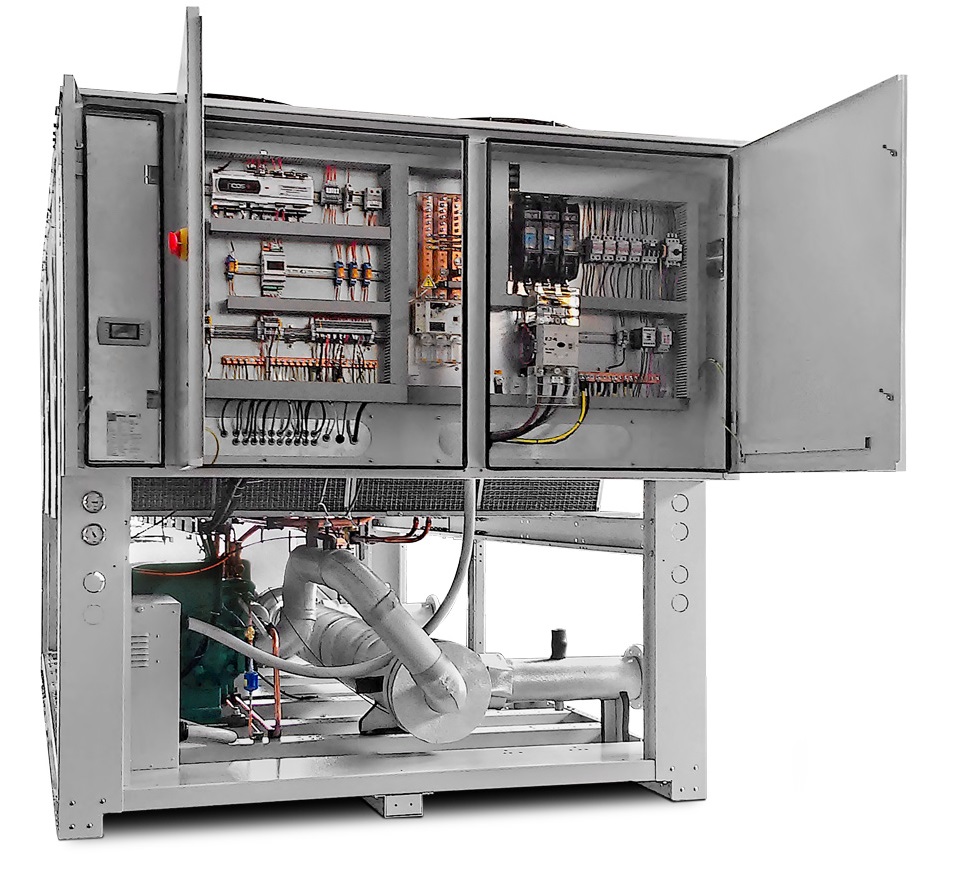

- Advanced control
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
AIR & CONDITIONING
 |
Technical DATA SHEET of ISV series
last updated: 10 October 2018
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| ISV.300 ? ISV.390 | DIM-ISV-001ST01 REV.00 |
SFI-ISV-300ST01 REV. 01 |
| ISV.440 ? ISV.520 | SFI-ISV-440ST01 REV. 00 | |
| ISV.600 ? ISV.680 | SFI-ISV-600ST01 REV. 00 | |
| ISV.770 | SFI-ISV-770ST01 REV. 00 | |

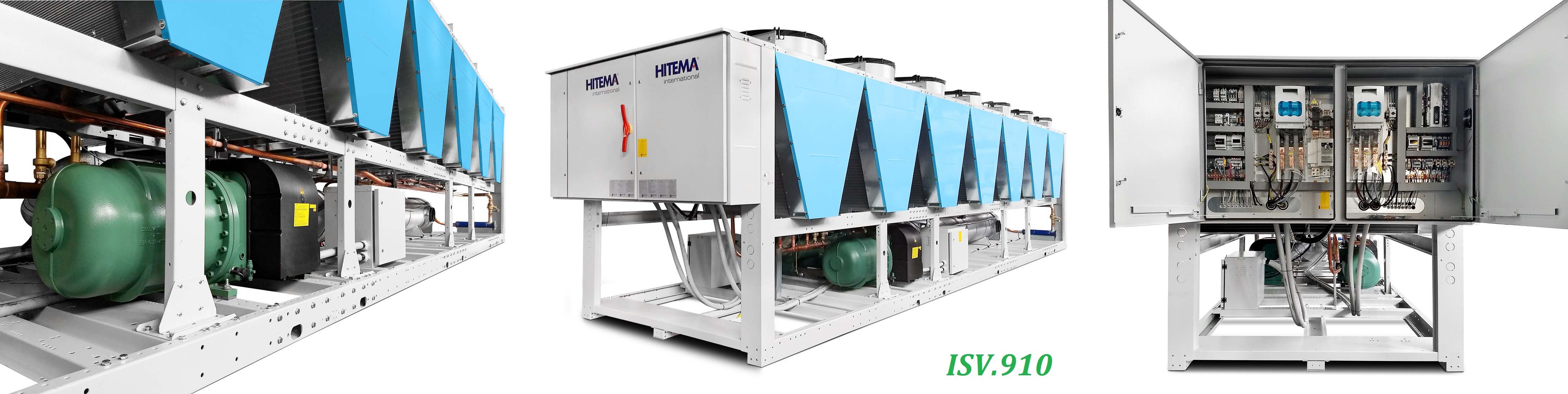

| ISV.850 ? ISV.910 | SFI-ISV-850ST01 REV. 00 | |
| ISV.970 ? ISV.1030 | SFI-ISV-970ST01 REV. 00 | |
| ISV.1140 | SFI-ISV-1140ST01 REV. 00 |
