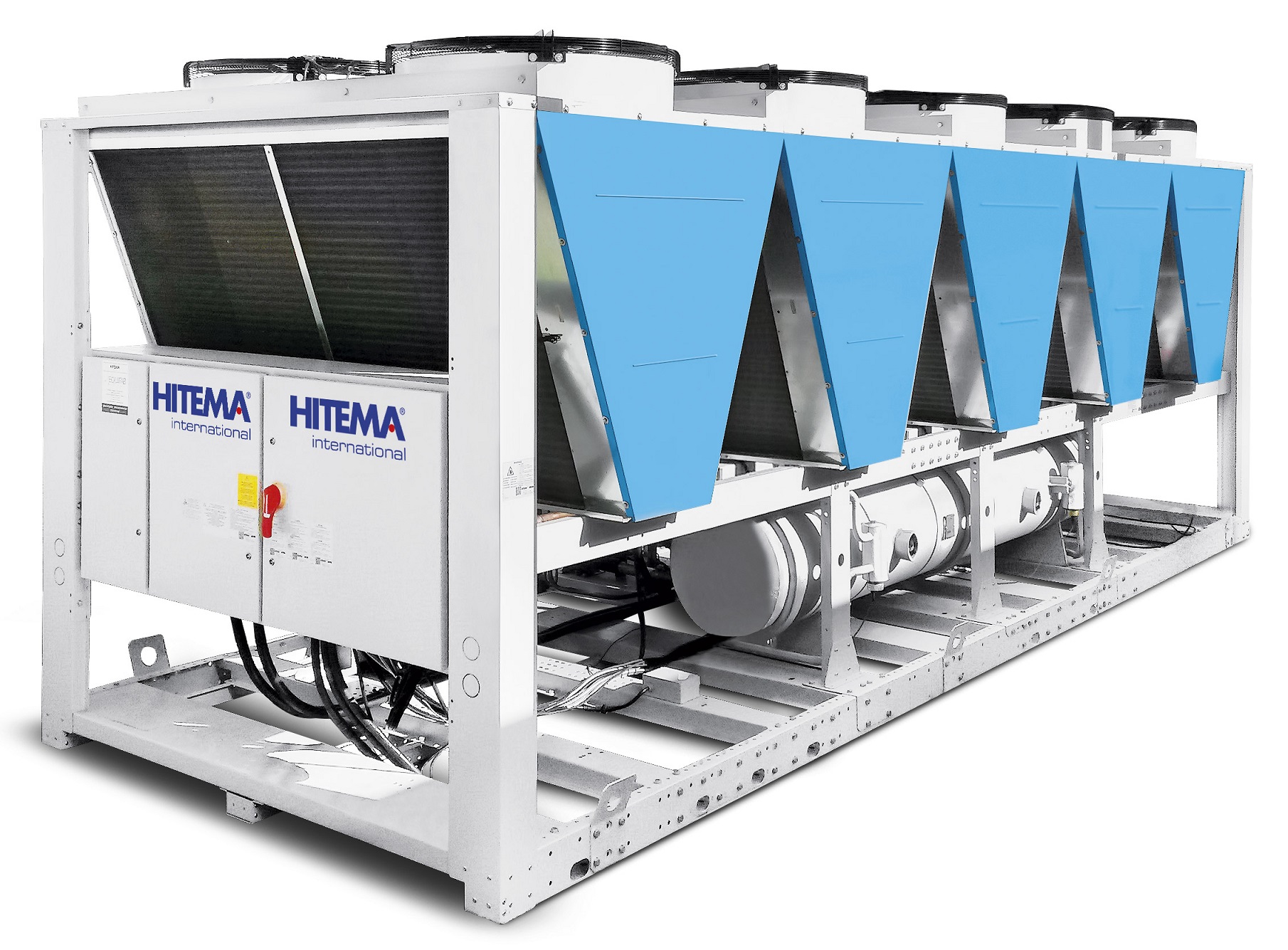

COOLING BIG EVOLUTION
ISVF SERIES

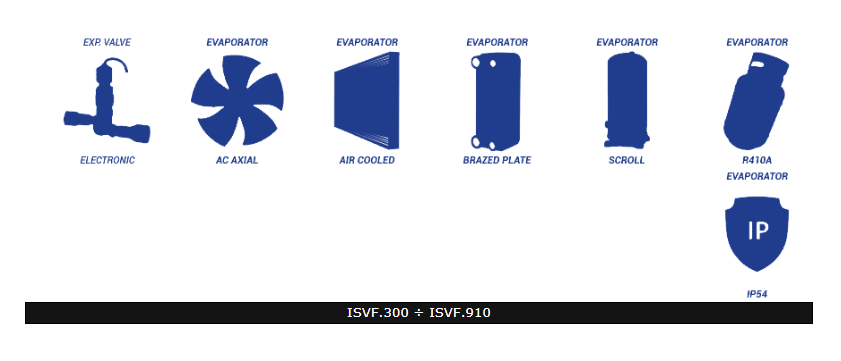

STANDARD CONFIGURATION:

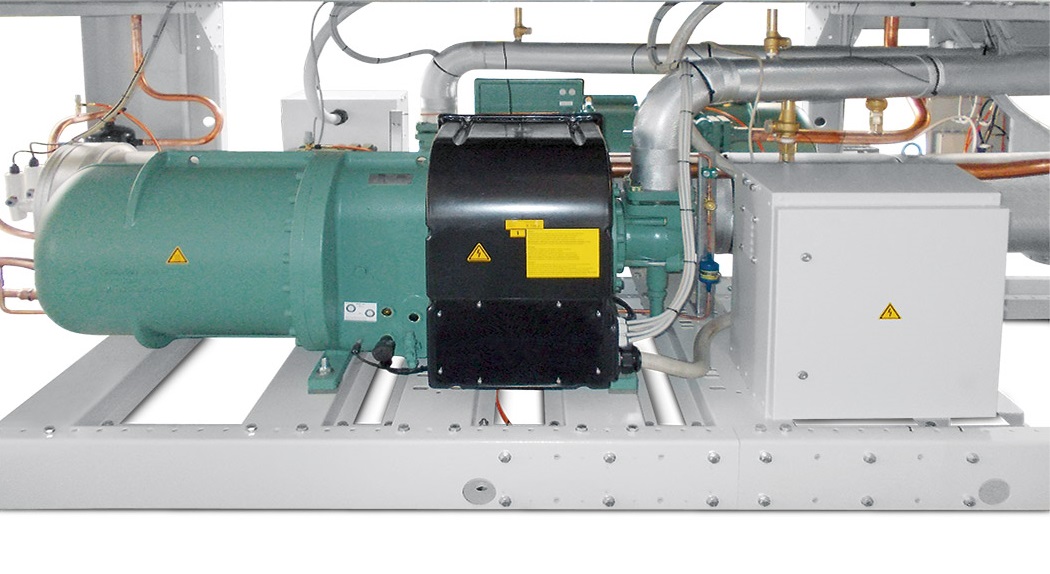

Compressors:VSD Screw
Condenser: Air-Cooled with integrated Free-Cooling coil, with copper tubes and aluminium finned core
Evaporator: Shell & Tube
Expansion Valve: Electronic
Fans: AC axial
Protection Rating: IP54
Refrigerant: R134a
ADVANTAGES:
- PHigh cooling capabilities with a wide range of possible applications
- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible
- Advanced control
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
 |
Technical DATA SHEET of ISVF series
last updated: 10 October 2018
|
Download PDF | |
|
Technical DATA SHEET of optimized free-cooling version ISVF-OPT
last updated: 10 October 2017
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| ISVF.300 | DIM-ISVF-001ST01 REV.00 |
SFI-ISV-300ST01 REV. 01 |
| ISVF.350 รท ISVF.390 | SFI-ISV-440ST01 REV. 00 | |
| ISVF.440 รท ISVF.480 | SFI-ISVF-440ST01 REV. 00 | |
| ISVF.520 | SFI-ISVF-520ST01 REV. 00 | |
| ISVF.600 รท ISVF.680 | SFI-ISV-850ST01 REV. 00 | |
| ISVF.770 | SFI-ISVF-770ST01 REV. 00 | |
| ISVF.850 รท ISVF.910 | SFI-ISVF-850ST01 REV. 00 |
GALLERY:
VIDEO:
No video
