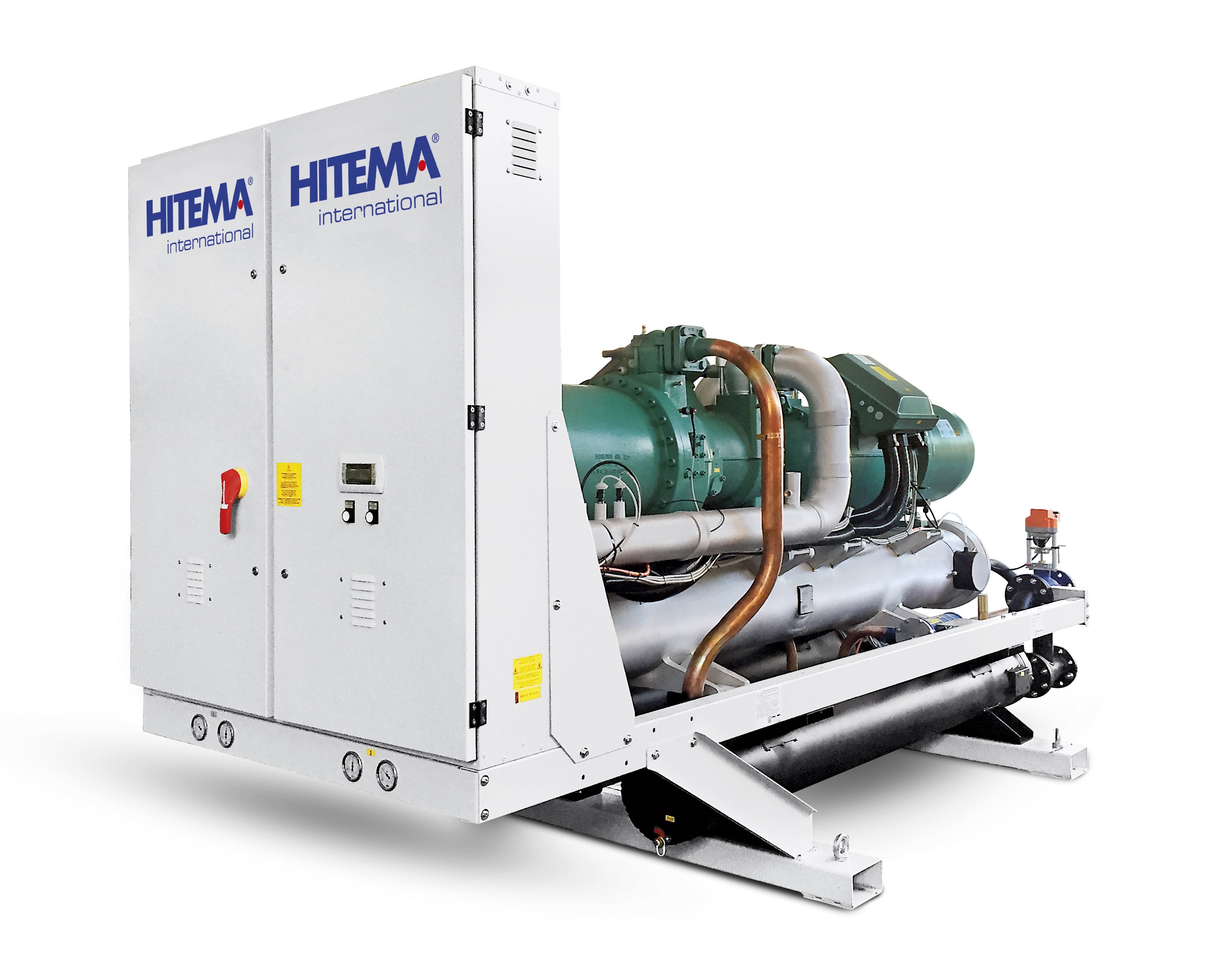

WATERCOOLED AND CONDENSERLESS
EWB / CWB series

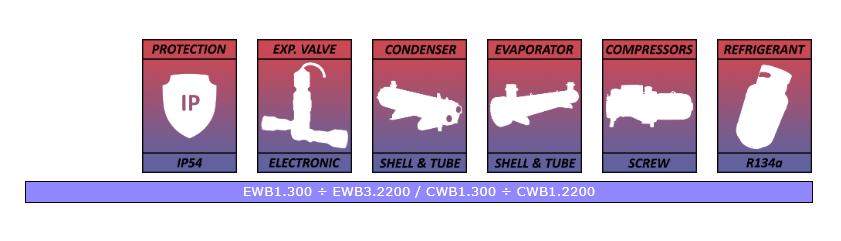

STANDARD CONFIGURATION:
Compressors:Screw
Condenser: Shell & Tube (EWB models only)
Evaporator: Shell & Tube
Expansion Valve: Electronic
Protection Rating: IP54
Refrigerant: R134a, R1234ze on request
ADVANTAGES:
- Reliability and continuity of operation also in severe service conditions
- Integrated hydraulic module with tank as a standard (inverter pumps on request)
- Stainless steel hydraulic circuit on request
- Low noise design available
- Free-cooling design is possible
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
 |
Technical DATA SHEET of EWB / CWB series
last updated: 29 October 2015
|
Download PDF | |
|
HITEMA EWB / CWB SERIES presentation
last updated: 03 July 2017
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard EWB units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| EWB1.300 ? EWB1.770 | DIM-EWB1-300ST01 REV.00 | SFI-EWB1-300ST01 REV. 00 |
| EWB2.300 ? EWB2.720 | DIM-EWB2-300ST01 REV.00 | SFI-EWB2-300ST01 REV. 01 |
| EWB2.860 ? EWB2.1500 | DIM-EWB2-860ST01 REV.00 | |
| EWB3.1690 ? EWB3.2200 | DIM-EWB3-1690ST01 REV.00 | SFI-EWB3-1690ST01 REV. 00 |
|
TECHNICAL DRAWINGS for standard CWB units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| CWB1.300 ? CWB1.770 | DIM-CWB1-300ST01 REV.00 | SFI-CWB1-300ST01 REV. 00 |
| CWB2.300 ? CWB2.720 | DIM-CWB2-300ST01 REV.00 | SFI-CWB2-300ST01 REV. 00 |
| CWB2.860 ? CWB2.1500 | DIM-CWB2-860ST01 REV.00 | |
| CWB3.1690 ? CWB3.2200 | DIM-CWB3-1690ST01 REV.00 | SFI-CWB3-1690ST01 REV. 00 |

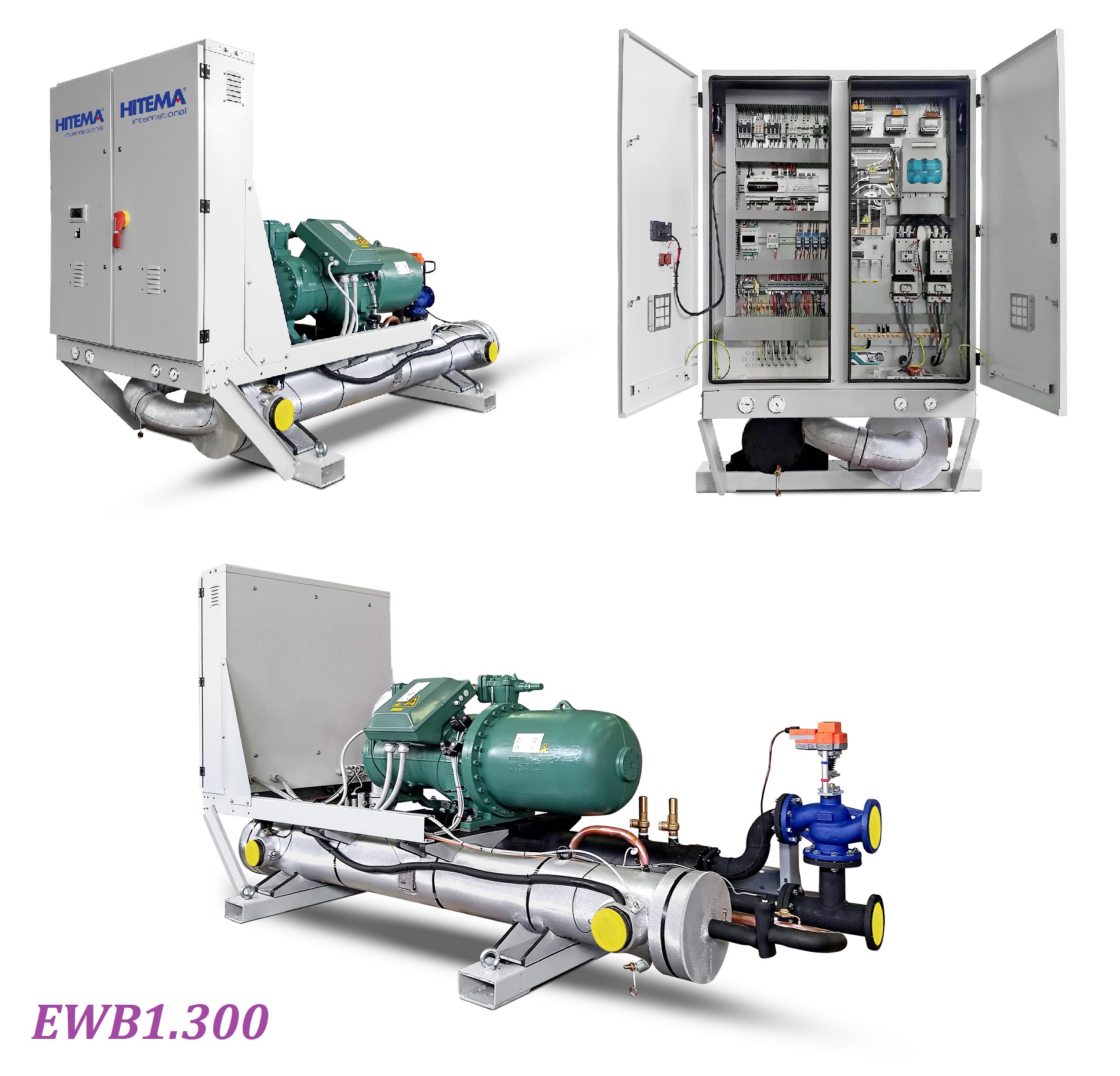

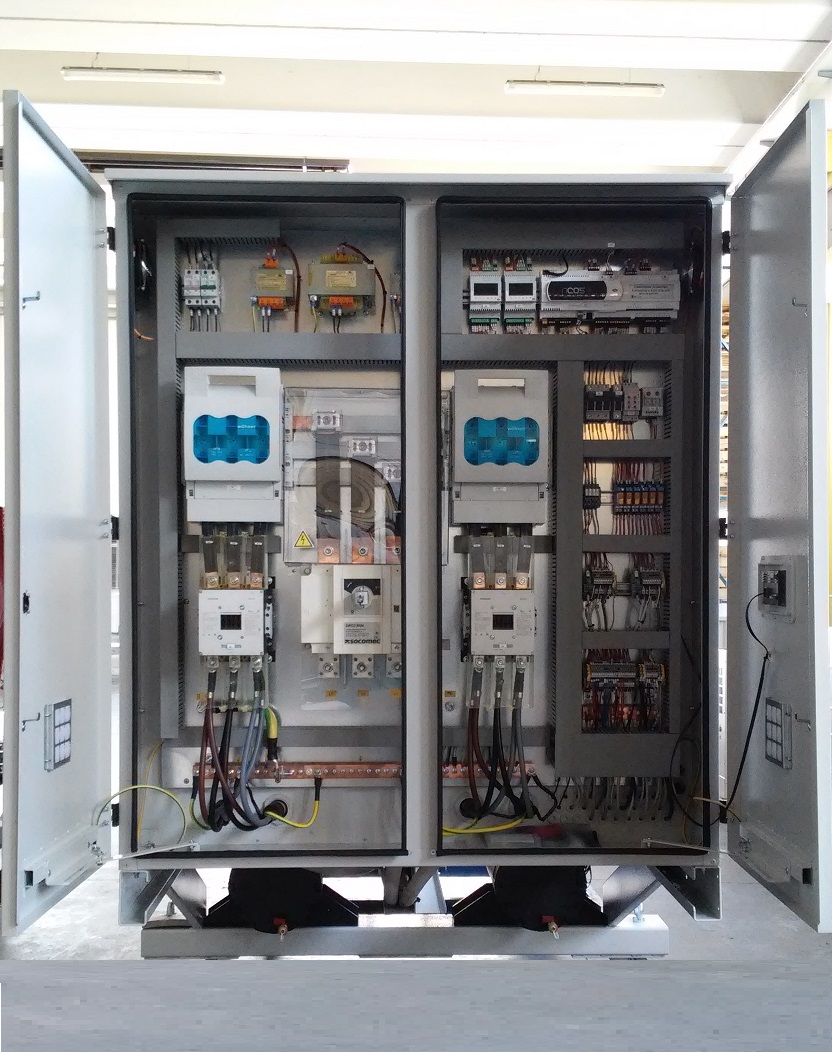

GALLERY:
