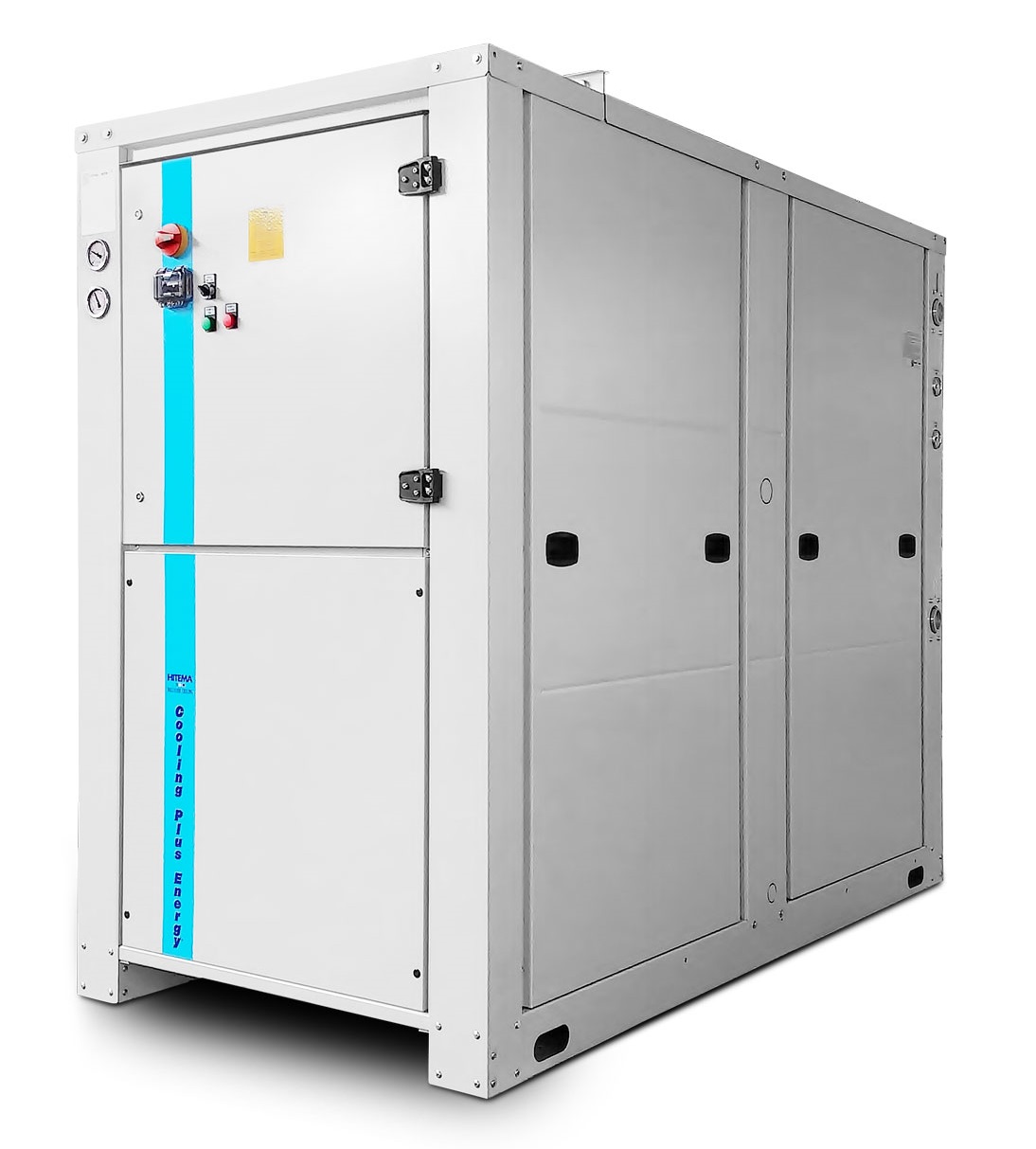

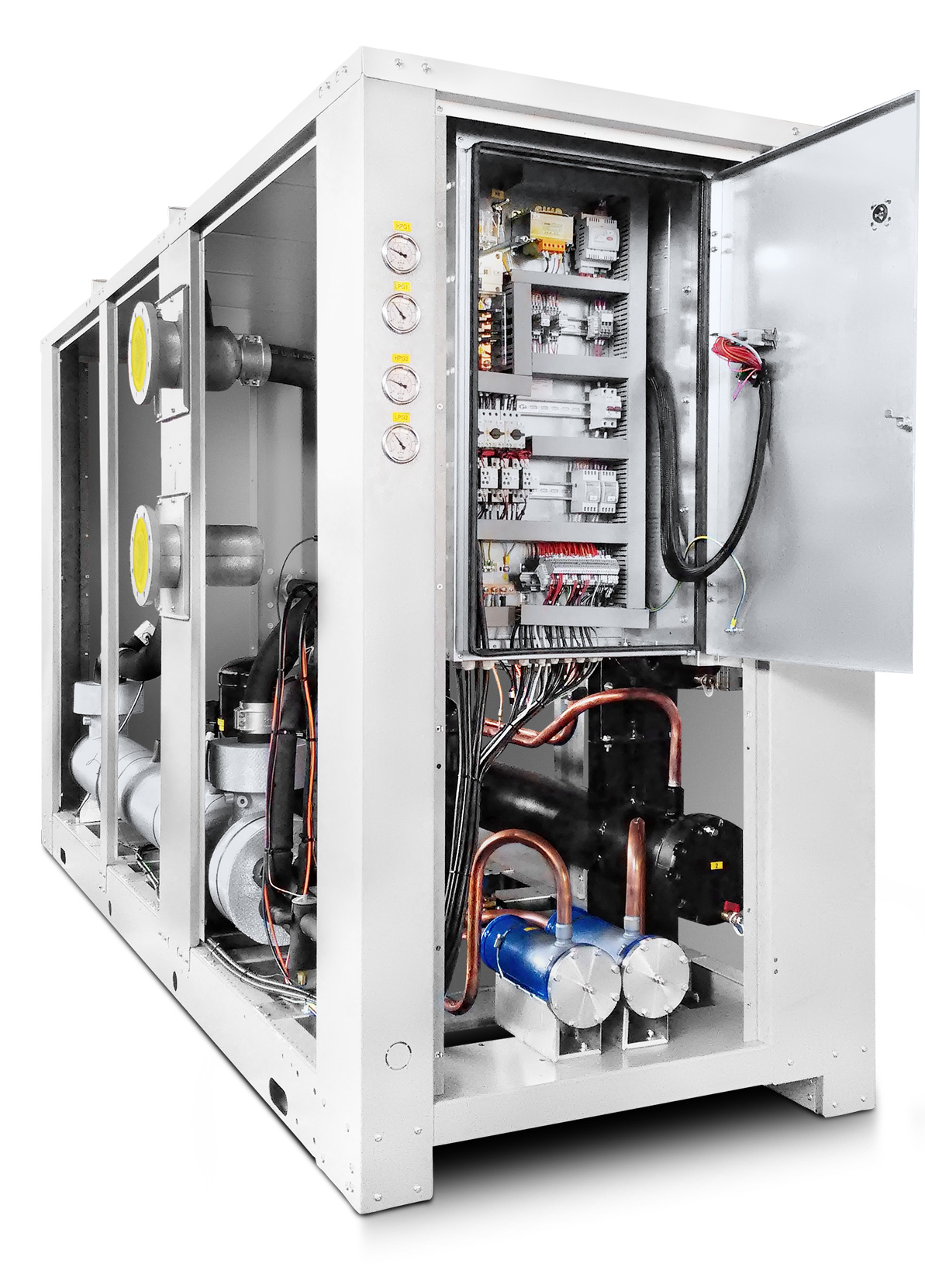

WATERCOOLED AND CONDENSERLESS
ENW / ENRC series

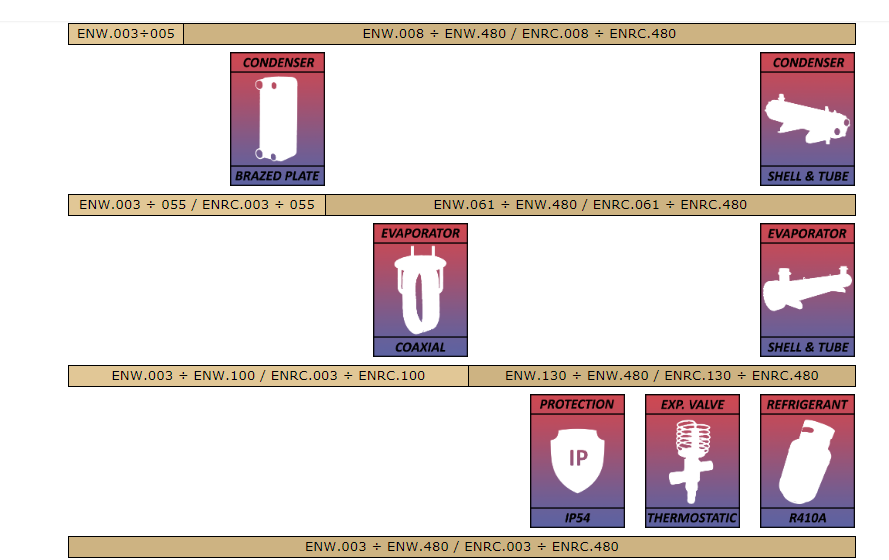

STANDARD CONFIGURATION:

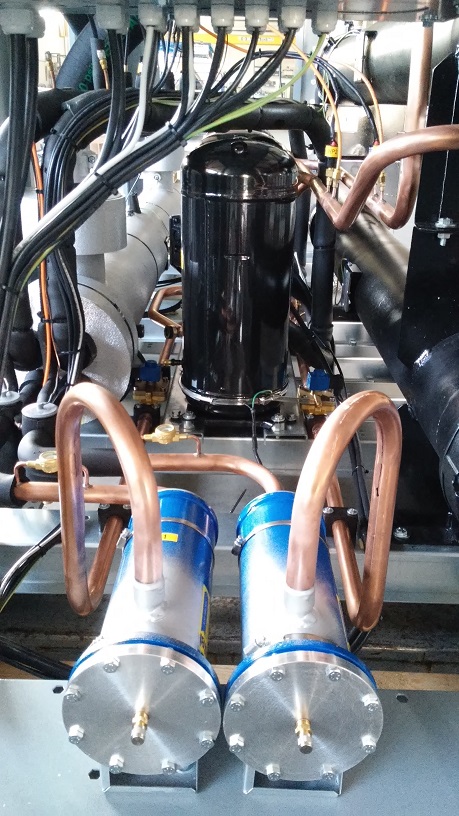

Compressors:Rotary (models 003?005) or Scroll (models 008?480)
Condenser: Brazed plate (ENW.003?ENW.055) or Shell & Tube (ENW.061?ENW.480)
Evaporator: Coaxial (models 003?100) or Shell & Tube (models 130?480)
Expansion Valve: Thermostatic
Protection Rating: IP54
Refrigerant: R410A
ADVANTAGES:
- High cooling capabilities with a wide range of possible applications

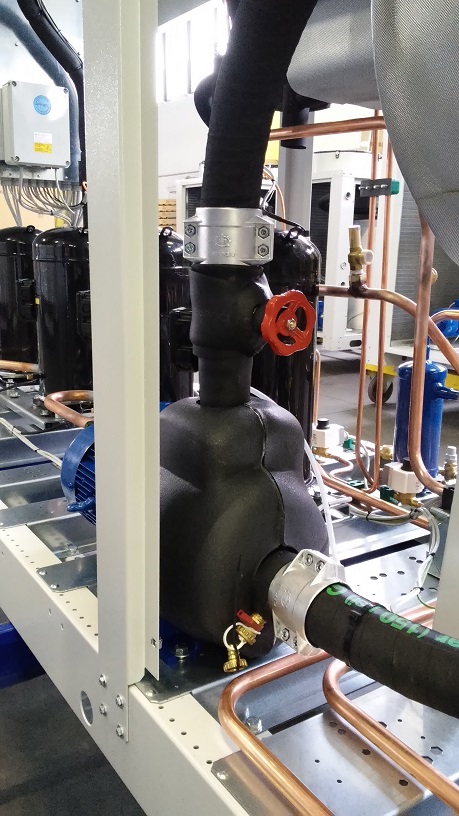

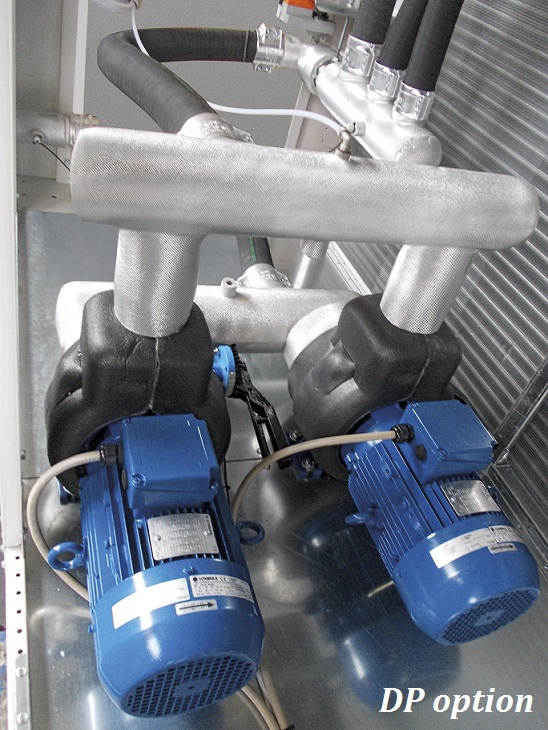

- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible
- Advanced controly

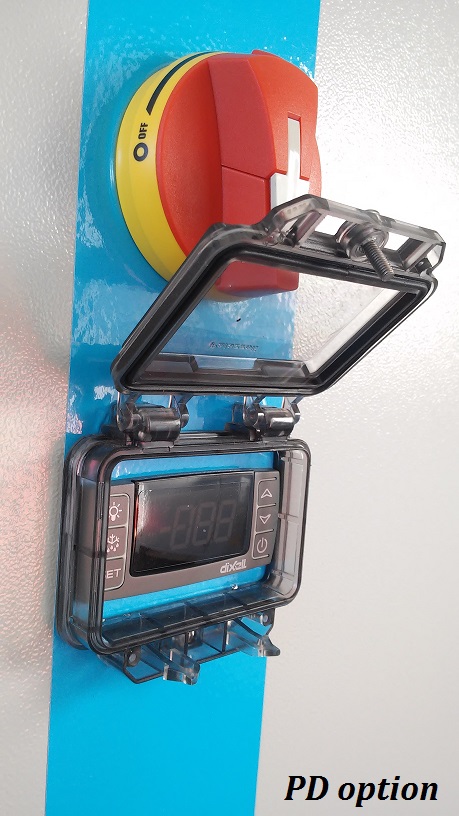

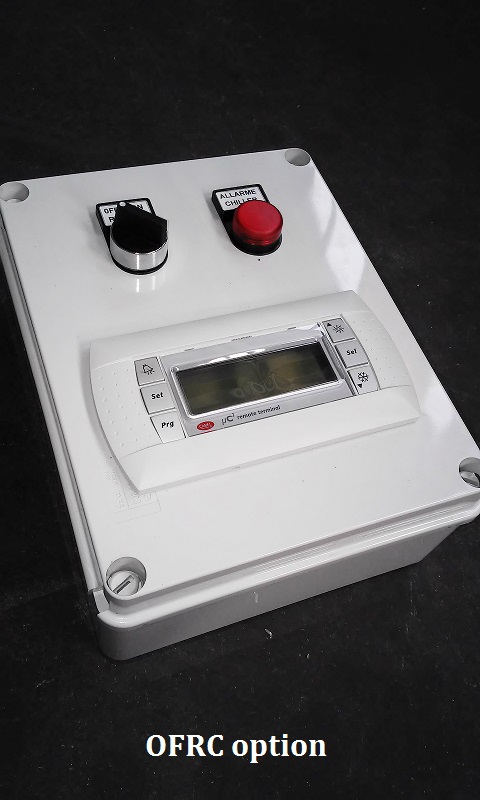

OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
AIR & CONDITIONING
 |
Technical DATA SHEET of ENW / ENRC series
last updated: 21 December 2016
|
Download PDF | |
|
Advantages of Hitema COAXIAL EVAPORATOR
last updated: 6 October 2016
|
Download PDF | |
|
Differences between water tank OPEN CIRCUIT and CLOSED CIRCUIT
last updated: 13 April 2016
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| ENW.003 ? ENW.005 | DIM-ENW-005ST01 REV.00 | SFI-ENW-003ST01 REV.01 |
| ENW.008 ? ENW.016 | DIM-ENW-008ST01 REV.01 | SFI-ENW-008ST01 REV.01 |
| ENW.018 ? ENW.022 | DIM-ENW-018ST01 REV.00 | |
| ENW.030 ? ENW.055 | DIM-ENW-030ST01 REV.00 | SFI-ENW-030ST01 REV.02 |
| ENW.061 ? ENW.100 | DIM-ENW-061ST01 REV.00 | SFI-ENW-061ST01 REV.01 |
| ENW.130 ? ENW.185 | DIM-ENW-130ST01 REV.00 | SFI-ENW-130ST01 Rev.01 |
| ENW.200 ? ENW.340 | DIM-ENW-200ST01 REV.00 | SFI-ENW-200ST01 Rev.00 |
| ENW.370 ? ENW.480 | DIM-ENW-370ST01 REV.00 |
