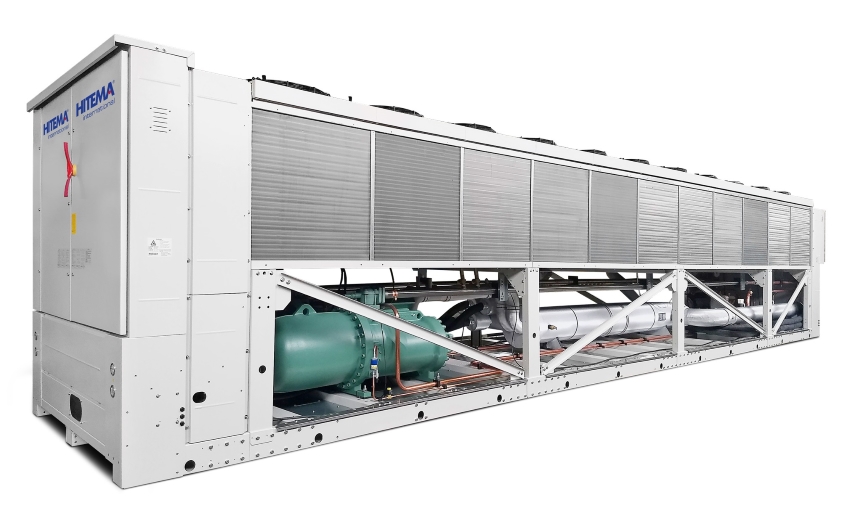

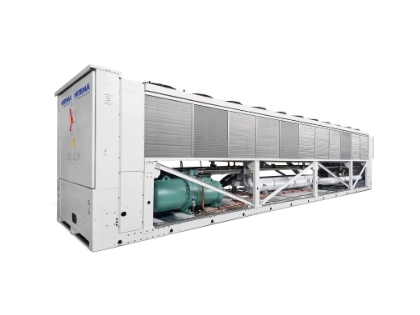

COOLING BIG EVOLUTION
NOVAF SERIES

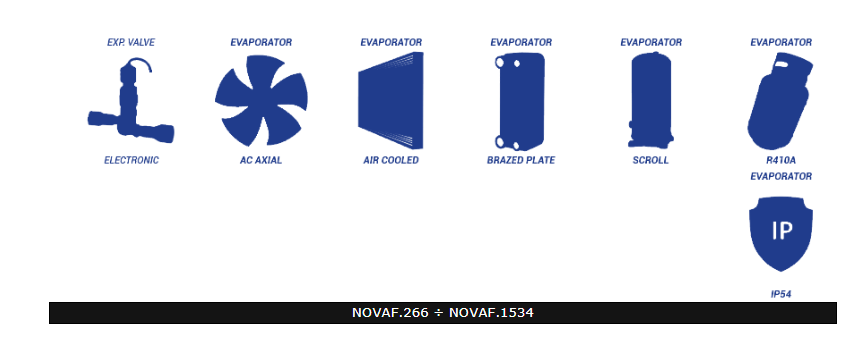

STANDARD CONFIGURATION:
Compressors:Screw
Condenser: Air-Cooled with integrated Free-cooling coil, with copper tubes and aluminium finned core

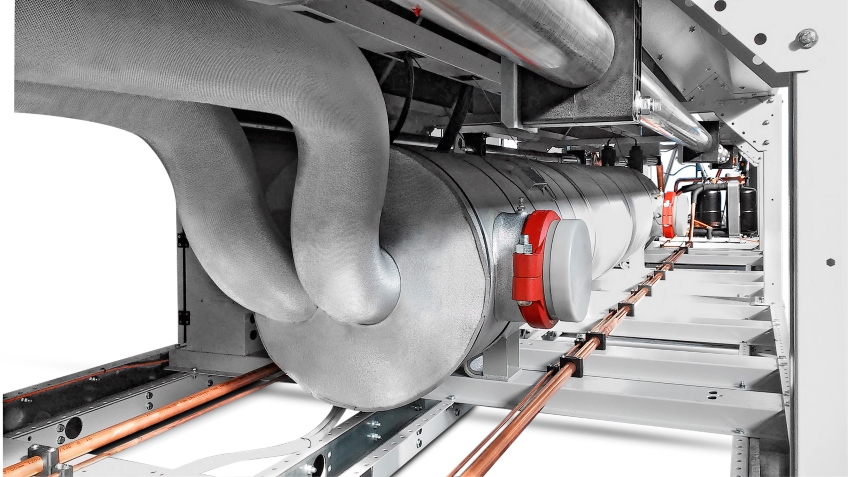

Evaporator: Shell & Tube
Expansion Valve: Electronic
Fans: AC axial
Protection Rating: IP54
Refrigerant: R134a, R513a, R1234ze on request
ADVANTAGES:
- High cooling capabilities with a wide range of possible applications
- According to the conditions of work all models are available in three different modes: ECO with economizer, NE without economizer, HE high efficiency with EC fans, optimized coil design
- The series can be designed with oversized compressors motors for high ambient design conditions

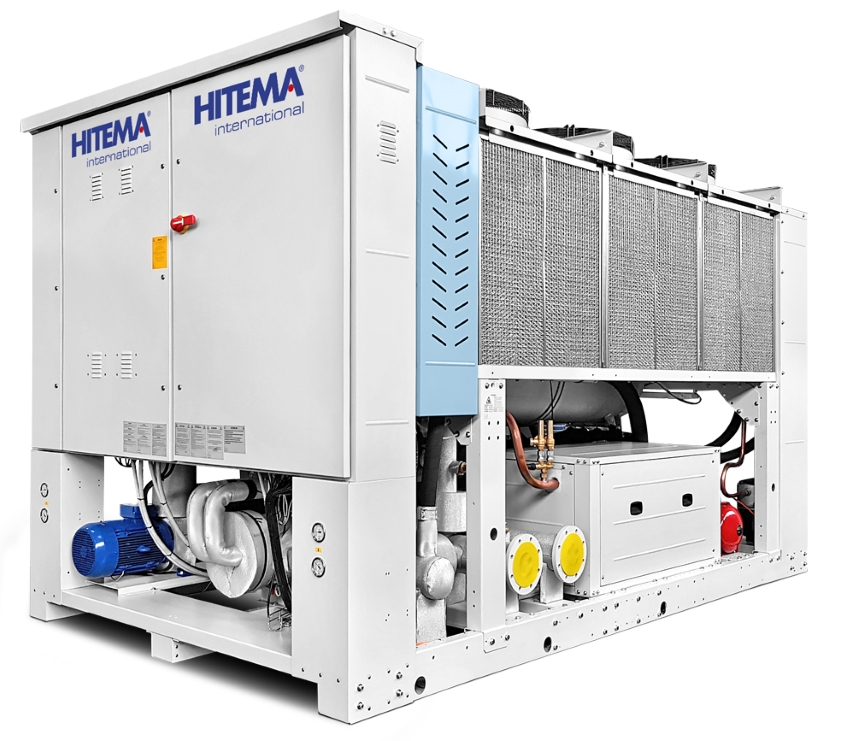

- Integrated hydraulic module with tank as an option (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Inverter driven compressor possibility for extreme efficiency
- Adiabatic and Free-cooling design is possible
- Advanced controly
OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
AIR & CONDITIONING
 |
Technical DATA SHEET of NOVAF series
last updated: 20 february 2018
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
|
|
| Models
|
Dimensional Drawing
|
P&ID
|
| NOVAF663?9103 | DIM-NOVAF-001ST01 REV.00 |
|
| NOVAF663?9103 | SFI NOVA-ST01-REV.00-NOVA.ECO_663?9113-NOVAF.ECO_663?9103 | |
| NOVAF663?9103 | SFI-NOVA-ST02-REV.00-NOVA.NE_663?9113-NOVAF.NE_663?9103 |
