PROCESS COOLING APPLICATION

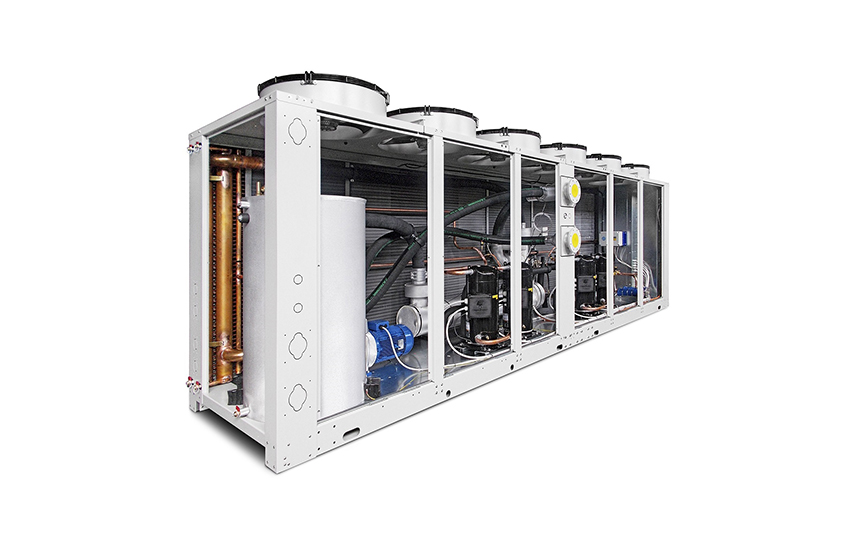

ENRF SERIES
STANDARD CONFIGURATION:
Compressors:Scroll
Condenser: Air-Cooled with integrated Free-Cooling coil, with copper tubes and aluminium finned core
Evaporator: Coaxial (ENRF.022÷ENRF.100) or Shell & Tube (ENRF.130÷ENRF.370)
Expansion Valve: Thermostatic
ADVANTAGES:
- Reliability and continuity of operation also in severe service conditions

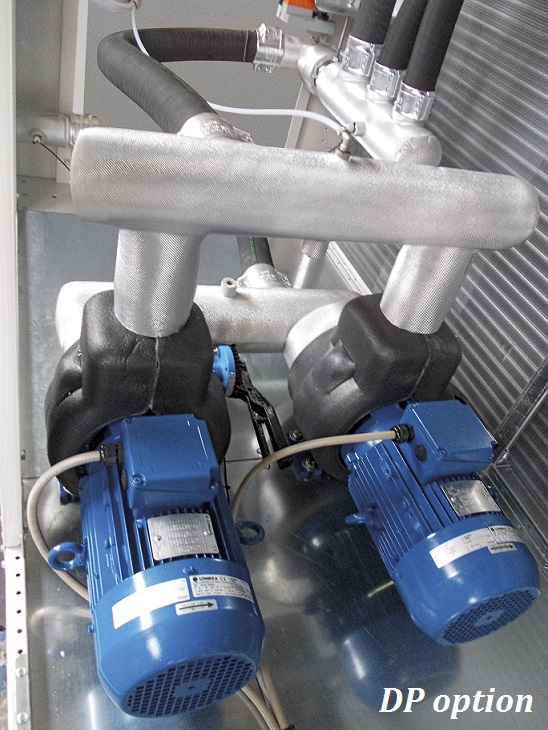

- Integrated hydraulic module with tank as a standard (inverter pumps on request)
- Stainless steel hydraulic circuit on request
- Stainless steel hydraulic circuit on request

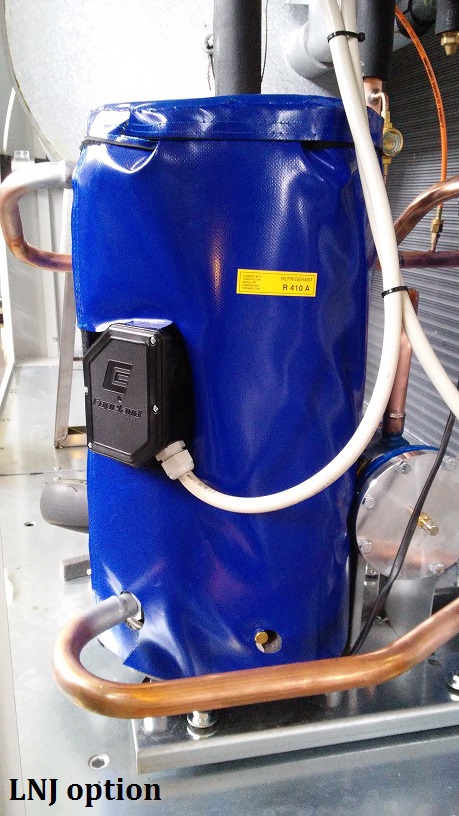

- Low noise design available

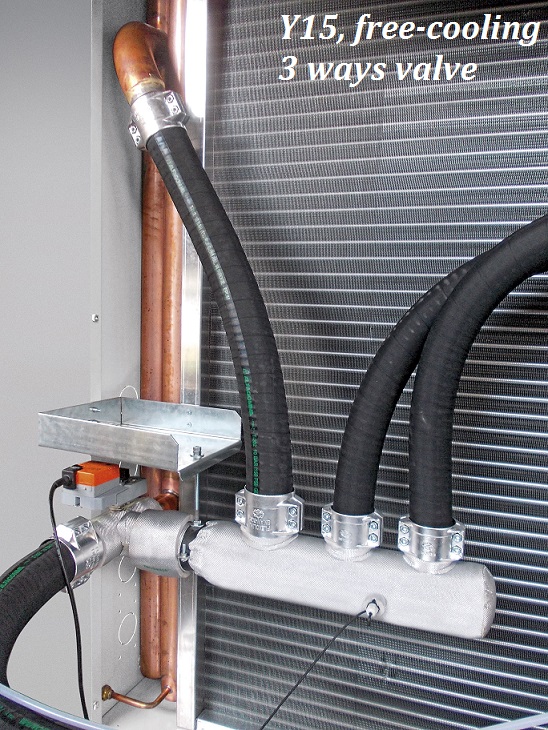

- Free-cooling design is possible

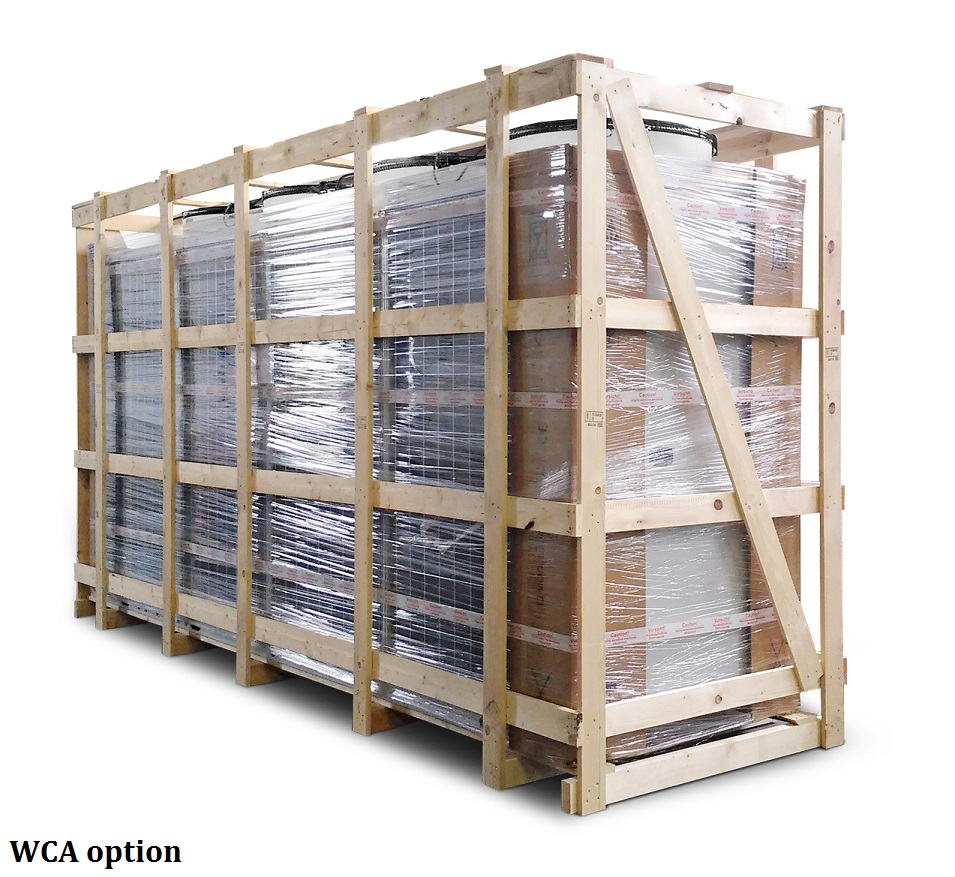

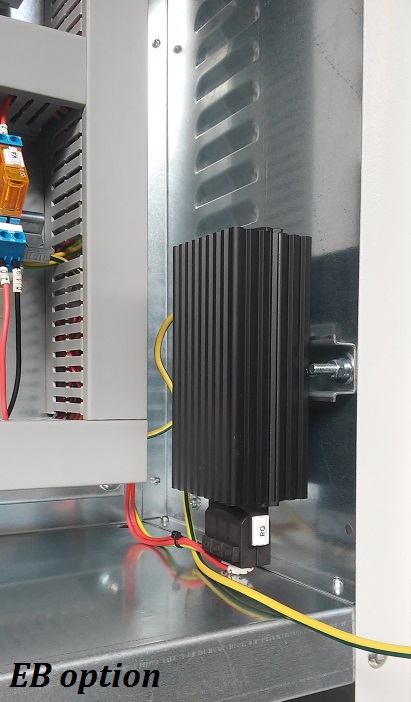

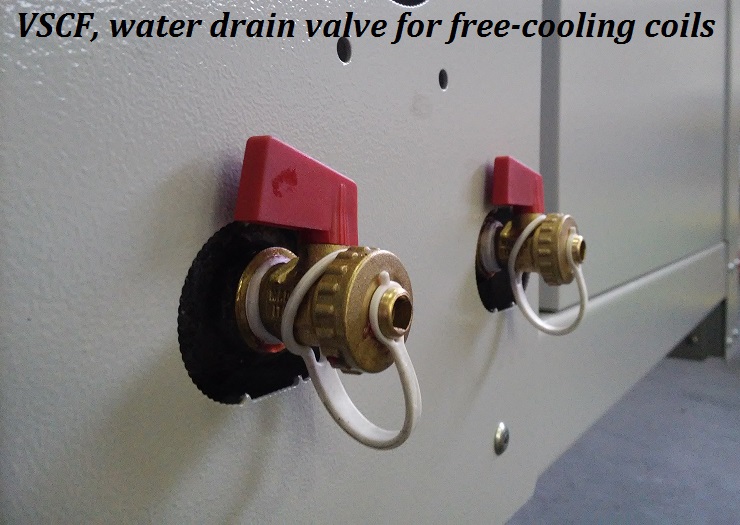

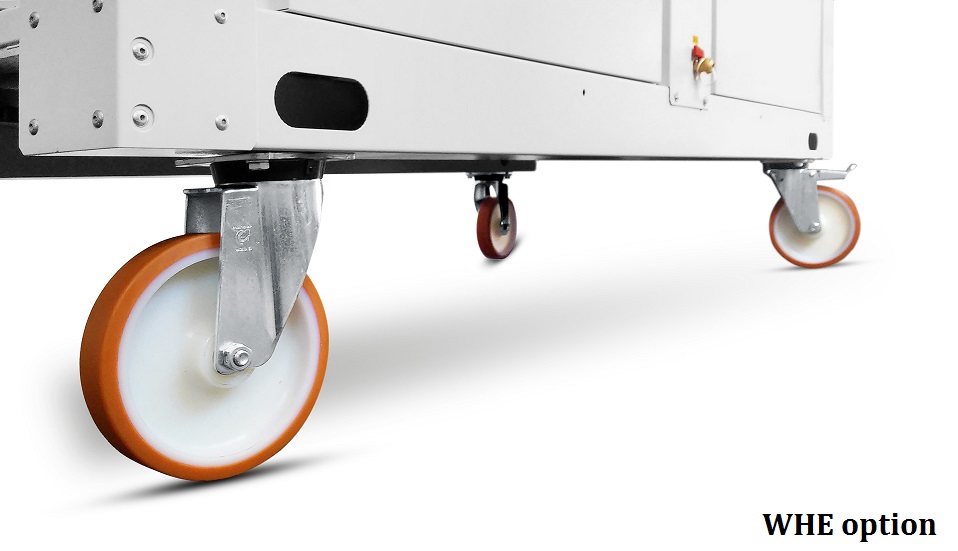

OPTIONAL ON REQUEST:
AUTOMOTIVE
FOOD & BEVERAGE
WINERIES
AGRICULTURE & FARMING
MACHINE TOOLS
PLASTICS & RUBBER
CHEMICAL & PHARMACEUTICAL
 |
echnical DATA SHEET of ENRF series
last updated: 30 July 2018
|
Download PDF | |
|
CORRECTIVE FACTORS for Duty and for Compressor Absorbed Power - ENR/ENRF Chillers
last updated: 04 July 2016
|
Download PDF | |
|
Advantages of Hitema COAXIAL EVAPORATOR
last updated: 6 October 2016
|
Download PDF | |
|
Evaluation method of AIR TEMPERATURE FOR 100% FREE-COOLING for not standard working condition - ENRF series
last updated: 13 April 2016
|
Download PDF | |
|
TECHNICAL DRAWINGS for standard units:
| |
| Models
|
Dimensional Drawing
|
P&ID
|
| ENRF.022 ÷ ENRF.030 | DIM-ENRF-022ST01 REV.03 | SFI-ENR-030ST01 REV.10 |
| ENRF.038 ÷ ENRF.055 | DIM-ENRF-038ST01 REV.02 | |
| ENRF.061 ÷ ENRF.090 | DIM-ENRF-061ST01 REV.04 | SFI-ENR-061ST01 REV.14 |
| ENRF.100 | DIM-ENRF-100ST0100 REV.02 | |
| ENRF.130 | DIM-ENRF-130ST01 Rev.01 | SFI-ENR-130ST01 Rev.16 |
| ENRF.160 ÷ ENRF.185 | DIM-ENRF-160ST0100 REV.02 | |
| ENRF.200 ÷ ENRF.370 | DIM-ENRF-230ST0100 REV.02 | SFI-ENR-230ST01 Rev.16 |
GALLERY:
